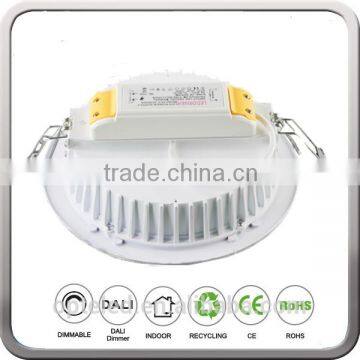

Flat SMD LED Downlight 30W With Samsung Chip
- 10000 Piece / Pieces per Month
- Shenzhe
- T/T Credit Card PayPal
You May Like
-
8 inch 30W SMD LED Downlight for Gallery
-
Super Bright COB LED Downlgihts 9W 100LM/W for COB
-
8 inch 9inch 40W 50W 60W Gimble Down Light 230mm Dimension LED Gimbal Downlight With CREE Meanwell Driver
-
Commercial light Rotate Led down light led recessed orientable recessed rotatable downlight
-
led shop lighting 45w 40 Watts rotatable down light rectangular led downlight wall washer light
-
360 Degree Down Light Revolve Swivel LED Downlight Ceiling Recessed With CREE COB CRI85
Product Details
| LED Light Source | Samsung SMD5630 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100~240V | Lamp Power(W) | 30 | |
| Lamp Luminous Flux(lm) | 2550 | Lamp Luminous Efficiency(lm/w) | 85 | |
| Color Temperature(CCT) | Other, Warm White Neutral White Cold White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | Other, IP44, IP44 | Certification | C-tick, CCC, CE, EMC, Energy Star, ETL, SAA, UL | |
| Model Number | OP-DLSMD0130 | Place of Origin | Guangdong, China | |
| Brand Name | OPTE |
Product Description
18W 20W SMD LED Downlight with Samsung Chip
The Most Professional OEM/ODM Commercial LED Lighting Manufacturer
1 Using Standard high quality of Samsung SMD5630
2. High color rendering., In excess of CRI:85
3.large uniform light beam angle and anti-glare ensuring the lighting requirements of commercial application
4.High efficiency means energy savings in excess of 80%(compared to 50W/75W halogen)
5.Optimal Thermal Design ensures longer life average life projection 40,000 hours at LM80
6.Dimmable available– Clipsal, Lumex,HPM, Smart recommended
7.Fully assembled, including down lights fittings and Australia flex and plug also can be provide
8.Full European Australian Approvals:CE SAA,C-tick
9.5 years warranty for LED lamps,3 years warranty for external drivers.
Model No. | OP-DLSMD0130 |
Related wattage: | 30W |
Input voltage: | 100~240 VAC |
Housing Color | White |
Operating frequency: | 50/60 Hz |
Power factor | 0.9 |
Beam angle | 120 ° |
LED brand | Samsung SMD5630 |
LED Qty | 60pcs |
Luminous flux | 2550 lm |
Light color | warm white/ nature white/ cool white |
CRI | ≥85 |
Diameter / Cut-out | Φ1230mm*88mm /200mm |
Driver | External |
IP Rating | IP44 |
Dimmable | Optional |
Main material | Aluminum alloy |
Working temperature | -20~45 °C |
Storage temperature | -20~80 °C |
Lifespan | 50000 h |
Certificates & standard | CE, ROHS, FCC, SAA |
Warranty | 3 years |
Other watts we have
Model No. | Power | Dimension | Cut-out |
OP-DLSMD0110 | 10W | Φ140mm*80mm | 120mm |
OP-DLSMD0120 | 20W | Φ190mm*83mm | 170mm |
OP-DLSMD0125 | 25W | Φ230mm*88mm | 200mm |
OP-DLSMD0130 | 30W | Φ230mm*88mm | 200mm |
Q1 How do you evaluate LED products?
Lumen output is only part of the story and can be misleading. To fully evaluate an LED product one needs to review the overall system efficiency,optical control, thermal management of the LEDs, and know at what point in time the fixture will reach 30 percent lumen depreciation. Products with good optical efficiency and thermal management will be able to deliver more lumens, on average, than traditional HID products.
Q2 How long will my LED Light last?
LEDS last up to 8 times longer than CFL and Incandescent lamps and you can expect at least 35,000 hours of use from your LED Lamp.
Q3 How should i choose the color temperature ?
3000K, warm and appealing, for leisure atmosphere and accent lighting
4000K, natural effect, ideal application on public places.
6000K, bright and efficient, for pleasant and healthy office environment.
LED Downlight is popular for store,hotel,shopping malls,gellery, museum,office
Q4 Does OPTE have ability to do OEM products?
In the past years OPTE has gained a lot of work on OEM of LED lighting and LED strip lighting. And thanks to these works, we gained a lot of valuable OEM experience. We will still strictly follow the principal that we won’t disclose or sell customer’s unique designs to any other third party.
Q5 How your company control the cost of the lights ?
We have a industrial chain which involve a completed system like Housing Die-Coasting , LED encapsulation and Driver R&D Departments , to make sure you our lights in competitive and high quality
Q6 What should i do if any lights not good in quality
Each lights under strictly quality inspection and 24 Hrs aging test before sending to you , we make sure the reject ratio under 3‰ , unfortunately , if any light failures in quality within warranty period , please offer the proof (Picture Video) to us ,we will replace & fix free of charge and bear the freight cost
Q7 Is there any cheap shipping cost to our country ?
We have long term cooperation forwarder in DHL FedEx ,Air freight sad Sea freight, we will try our best to get the best freight rate for you
