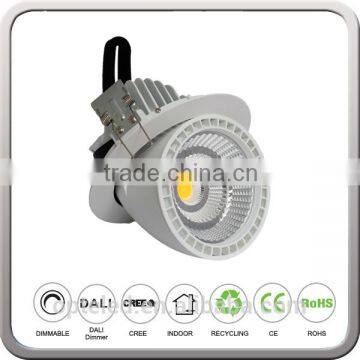

30W 35W COB LED Gimbal Down Light
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
350 Degree Horizontally downlighting and 45 Degree Vertically black white housing 30W 35W Gimbal LED Downlight
-
Led shoplighter / gimbal led downlight 10W 20w 30w 35W 40w 50w
-
Energy Saving 30W 35W Gimbal Down Light Rotating LED Ceiling Lamps
-
LED Trunk Light 30W 35W
-
High CRI 90+ Ra COB Adjustable Gimbal Led Downlight
-
360 Degree Rotary Gimbal LED Downlight COB 30W 35W
Product Details
| LED Light Source | CREE COB | Warranty(Years) | 3 | |
| Input Voltage(V) | AC85~265V | Lamp Power(W) | 35 | |
| Lamp Luminous Flux(lm) | 2975 | Lamp Luminous Efficiency(lm/w) | 85 | |
| Color Temperature(CCT) | Warm White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP33 | Certification | C-tick, CCC, CE, EMC, Energy Star, ETL, PSE, SAA, UL | |
| Model Number | OP-GTDCOB0135W | Place of Origin | Guangdong, China | |
| Brand Name | OPTE |
Product Description
30W 35W COB LED Gimbal Down Light
COB LED GImbal Light Side View
COB LED GImbal Light Back View
Meanwell driver optional
Dimmable LED Driver Compatiable with 98% dimmer in the world
Light distribution
1 Using Standard high quality of Cree COB LED
2. High color rendering., In excess of CRI:90
3.Uniform light beam angle and anti-glare ensuring the lighting requirements of commercial application
4. Beam direction adjustable: 350° horizontally and 45° vertically with gimbal.
5.Optimal Thermal Design ensures longer life average life projection 40,000 hours at LM80
6.Dimmable available – Clipsal, Lumex,HPM, Smart recommended
7.Fully assembled, including down lights fittings and Australia flex and plug also can be provide
8.Full European Australian Approvals:CE SAA,C-tick
9.5 years warranty for LED lamps,3 years warranty for external drivers.
Name | LED Gimbal Light |
Related wattage: | 30W / 35W |
Input voltage: | 85-265 VAC |
Usage | Commercial Lighting |
Operating frequency: | 50/60 Hz |
Power factor | 0.9 |
Beam angle | 30 ° |
LED brand | CREE COB |
LED Qty | 1 pcs |
Luminous flux | 2550LM / 2975LM |
Light color | warm white/ nature white/ cool white |
CRI | ≥85/90Ra |
Diameter/ Cutout | Φ165*160mm / 155mm |
Shell Housing | White/Black |
Driver | External |
Dimmable | Optional |
Main material | Aluminum alloy |
Working temperature | -20~45 °C |
Storage temperature | -20~80 °C |
Lifespan | 50000 h |
Certificates & standard | CE, ROHS, TUV SAA |
Warranty | 3 years |
Other watts we have for this downlight
Model No. | Power | Power Factor | LED | Lumen | CRI | Beam Angle | Cut-out | Dimension | |
OP-DLCOB0106W | 10/12W | >0.95 | Cree | 900LM / 1020LM | ≥90 | 30° | 100mm | Φ108mm*H90mm | |
OP-GTDCOB0120W | 20W | >0.95 | Cree | 1700LM | ≥90 | 15°/ 24° /38°/ 60° | 128mm | Φ138mm*115mm | |
OP-GTDCOB0130/35W | 30/35W | >0.95 | Cree | 2550LM /2975LM | ≥90 | 15°/ 24° /38°/ 60° | 155mm | Φ165mm*160mm | |
OP-GTDCOB0140W | 40W | >0.95 | Cree | 3400LM | ≥90 | 15°/ 24° /38°/ 60° | 155mm | Φ165mm*160mm | |
OP-GTDCOB0145/50W | 50W | >0.95 | Cree | 3825/4250LM | ≥90 | 24° / 60° | 180mm | Φ190mm*175mm | |
Q1 How do you evaluate LED Downlight ?
Lumen output is only part of the story and can be misleading. To fully evaluate an LED product one needs to review the overall system efficiency,optical control, thermal management of the LEDs, and know at what point in time the fixture will reach 30 percent lumen depreciation. Products with good optical efficiency and thermal management will be able to deliver more lumens, on average, than traditional HID products.
Q2 How long will my LED Light last?
LEDS last up to 8 times longer than CFL and Incandescent lamps and you can expect at least 35,000 hours of use from your LED Lamp.
Q3 How should i choose the color temperature ?
3000K, warm and appealing, for leisure atmosphere and accent lighting
4000K, natural effect, ideal application on public places.
6000K, bright and efficient, for pleasant and healthy office environment.
LED Downlight is popular for store,hotel,shopping malls,gellery, museum,office
Q4 Does OPTE have ability to do OEM products?
In the past years OPTE has gained a lot of work on OEM of LED lighting and LED strip lighting. And thanks to these works, we gained a lot of valuable OEM experience. We will still strictly follow the principal that we won’t disclose or sell customer’s unique designs to any other third party.
Q5 How your company control the cost of the lights ?
We have a industrial chain which involve a completed system like Housing Die-Coasting , LED encapsulation and Driver R&D Departments , to make sure you our lights in competitive and high quality
Q6 3-5 Years Warranty Term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.
Q7 Is there any cheap shipping cost to our country ?
We have long term cooperation forwarder in DHL FedEx ,Air freight sad Sea freight, we will try our best to get the best freight rate for you
