Home > Products > Silent Diesel Generator > china factory auxiliary type diesel generator 5 kva

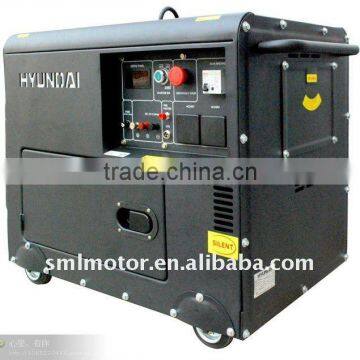

china factory auxiliary type diesel generator 5 kva
USD $450 - $750
/ Set
1 Set(Min.Order)
- 80000 Set / Sets per Month
- Fuzhou
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | diesel generator | |
| Model Number | GF3-5kw | Output Type | AC Single Phase | |
| Speed | 3000 3600rpm | Frequency | 50hz/60hz | |
| Rated Power | 5kw | Rated Voltage | 230V | |
| Rated Current | 17.2A |
Product Description
china factory auxiliary type diesel generator 5 kva
1. Rated power: 3kw , 5kw , 6kw
2. 178, 186 ,188 engine, air cooled , single /3-phase
3. brushless alterator with capacitor
| Air-cooled Diesel Generator Sets (Single Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
diesel generator Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date ,During the guarantee period ,Saint will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material,After expiration ,"Saint "provides cose spare pars maintenance of gensets.
diesel generator Manufacturing standards
ISO9001 2008 ,CE ,GB/T2820,GB755 ,SONCAP ,AND SO ON.
