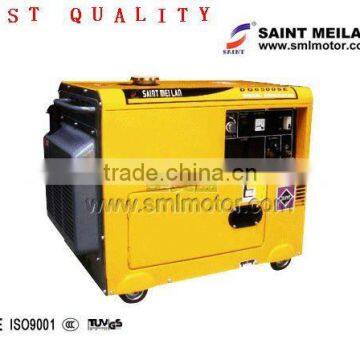

generator 5.5 kva with digital,ats

Specifications

generator 5.5 kva with digital,ats

1. Rated power: 3kw , 5kw , 6kw

2. 178, 186 engine, air cooled , single phase

3. brushless alterantor or brush alterantor for your option

Shining Points:

• The lightest and smallest among the gensets with same outpout
• Full automatic generator protection system
• Special dual protection system
• Unique unloading system for stopping the generator
• Steady frequency-governing ratio ≤ 3%, complying with military standard
• Automatic Voltage Regulation for maintaining steady voltage
• Automatic transfer switching,remote monitoring, to realize guardless by human
• Low noise,only 70dB/7m
• New patent design,low inner housing temperature,stable output and good reliability

Features:

1. Comparing other generators with same output, it is of compact structure (1100*660*740mm), light weight (248kg)and reliable performance.

2. Adopting the technique of new patented design structure

Our company has adopted the technique of new-patented design structure to separate fully cold & heat wind passages in inner housing. It makes the generator output be no power drop for long-period operation.

The wind passage with special labyrinth design makes the generator be of lower noise.

3. Application of intelligent control panel

Our company has adopted new-type intelligent control panel, which facilitate the operation. The operator can know the real working condition of the generator from panel reading. There are more than ten protections of the generator in the panel, such as protections of frequency, voltage, current, low oil pressure, low fuel level, and electric fan adjusting the temperature automatically when inner-housing temperature over 60, and automatic unload before engine stopped each time etc. The diesel/water separator can ensure the fuel quality.

4. Application of automatic shifting switch (ATS)

Our company can fit ATS based on customer requirement, which can make the generator be automatic operation without the operator on the spot. When city power net breaks down, ATS can deliver the signal in shortest time to the generator for starting. When city power net is recovered, ATS can shift the power from the generator to city power net and the generator will be automatically stopped later.

5. Application of new-generation intelligent AVR

Our company has adopted new-generation intelligent AVR (automatic voltage-constant) to make the output voltage be steady.
