Home > Products > Silent Diesel Generator > generator 7.5 kva

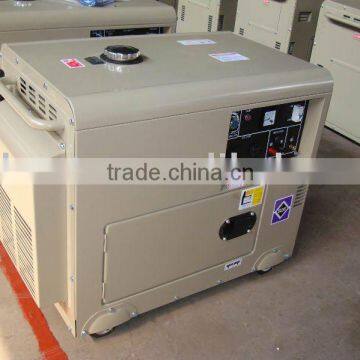

generator 7.5 kva
USD $410 - $470
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- Fuzhou
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | SML | |
| Model Number | GF3-3kw | Output Type | AC Single Phase | |
| Speed | 3000 3600rpm | Frequency | 50hz/60hz | |
| Rated Power | 3kw | Rated Voltage | 230V | |
| Rated Current | 9.42A |
Product Description
Specifications
generator1. air-cooled engine, brushless alterator with capacitor
2. pure copper wires, standard meters
generator 7.5 kva
1. Rated power: 3kw , 5kw , 6kw
2. 178, 186 ,188 engine, air cooled , single /3-phase
3. brushless alterantor or brush alterantor for your option
Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date ,During the guarantee period ,Saint will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material,After expiration ,"Saint "provides cose spare pars maintenance of gensets.
Manufacturing standards
ISO9001 2008 ,CE ,GB/T2820,GB755 ,SONCAP ,AND SO ON.
| Air-cooled Diesel Generator Sets (Single Phase) | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
