AC Three Phase Output Type Air Cooled Deutz Generator

Specifications

AC Three Phase Output Type  Air Cooled Deutz Generator

water cooled weichai deutz OEM diesel engine or air cooled genmany deutz diesel engine portable generator

1. deutz air cooled diesel engine: F2L912 ,F3L912 ,F4L912 ,F6L912 ,BF6L913ADG ,BF6L913CADG
2. water cooled Weichai DEUTZ  Diesel Engine D226B-3D,TD226B-3D,TD226B-4D,TD226B-6D,TBD226B-6D,TBD226B-6D5,BF4M1013E,BF4M1013EC,BF6M1013E,BF4M1013FC,BF6M1015,BF8M1015C Series
3. Multi-cylinder in-line or ver engine, 4-stroke, direct injection
4. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
5. Machinery or electronic governing
6. Fuel injection pump
7. Electric motor starting system
8. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
9. low discharge, and low fuel consumption
10. Installed conveniently and maintain easily

AC Three Phase Output Type Brushless Alternator

1. AC alternator: Option : Marathon, Leroysomer,Stamford, Engga ,ST/STC
2. Brushless, 4 poles, rotation magnet,  H class insulation system
3. IP21-23(NEMA1) enclose is standard for all industrial alternators with avr adjustment
4. AVR self-regulated, voltage regulation rate:<=±1%
5. Simple installation and maintenance with easy access to termial, rotating diodes and coupling bolts.
6. Wide range of flange adaptors and single bearing disc coupling
7. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
8. Moisture-proof, sand-proof, dustproof,salt-proof and vibration-proof

AC Three Phase Output Generator Options

a) Trailer Mobile Mount

b) Soundproof canopy / water proof Silent type

c) ATS (automatic transfer switch)

d) Parallel system

e) Remote system

Generator Control Panel ( ComAp/Deepsea/Smartgen)

a) High water Temperature Shutdown

b) Low Oil Pressure Shutdown

c) Over Speed Shutdown

d) Over Crank Shutdown

e) Protection as Emergent Stop

Parameters of Operation: Digital type, all function showed by LED

68db in 7 meters super silent deutz generator specifIcations (Air /water cooled diesel portable generator)

portable generator installation diagram

Open Type portable diesel generating sets

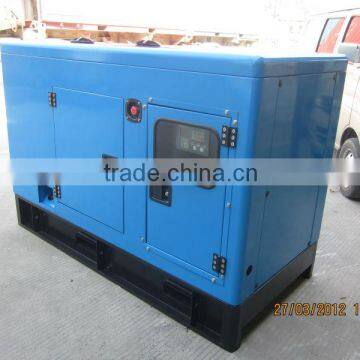

Weichai Deutz Sound proof Silent 10KW Portable Generator

Weichai Deutz Mobile Trailer Portable Generator

Mobile generating sets are available throughout the full kva rating of the Saint Meilan range. Trailers (2 to 6 wheel) meet all relevant road traffic regulations and are generally used in conjunction with with weatherproof canopies or sound shields.

We offer several different trailer options, namely basic braked and none braked site trailers which are only suitable for off highway use due to the lack of lights etc., then there are full EC and none EC trailers which are suitable for on highway use depending on which Country the unit will be used in.

Invitation to visit our portable generator factory

1. If you are interested in our portable generator, we sincerely invite you to take a visit of our factory when you are in China.

2. Our generator factory locates in Fuan City,FuJian Province, which is famous generator city, it is about 2 hours away from fuzhou changle air port and xiamen airport.

3. When you come to FuJian province or FU'AN City, we can send cars to pick you up and take you to our factory.

4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
