CXP1325 CNC Plasma machine
Negotiable
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
CX-1325 Industrial Plasma Cutting Machine
-
Super Star Brand! CXP 1325 Industrial CNC Plasma Machine
-
CX-1530 Industrial Plasma Cutting Machine
-
high speed 3D Arm type CX1520 Water Jet Cutting machine for cutting stainless steel, aluminium sheet and marble
-
High quality low price cutting 0.5-15mm plasma cnc router machine
-
Chinese plasma metal cutting machine with CE&ISO&SGS certification
Product Details
| Place of Origin | Shandong, China | Brand Name | Super star | |
| Model Number | 1530-G | Input Voltage | 8.5-10.5KW | |
| Rated Current | 15-200A | Dimensions | 1500x3000mm | |
| Usage | Cut sheet iron,aluminum,steel |
Product Description

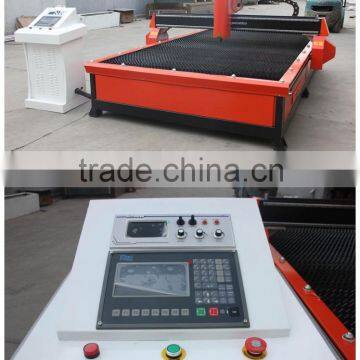

CNC Plasma Machine
1530-G Industrial plasma cutting machine
Features
- Welded lathe bed of thick profiled steel, more solid and stable.
2. Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath. The level difference of platform remains in 0-1.5mm..
3. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
4. Panasonic Servo motor, Taiwan servo redactor and high-accurate rack transmission. Lower noise, stable and accurate coordinate movement.
5. American Hypertherm power(optional Cut-Master power)together with high-sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
6. Microstep control system made in Beijing. Best choice for all kinds of different thickness material and heterotypic sheet cutting.
Specification
Working material | Iron, aluminum, galvanized iron, armor plate, titanium |
Working area | 1500×3000 mm |
Processing thickness | 0.5-50mm(Optional) |
Cutting speed | 0-8000mm/min |
Power | 8.5KW-10.5KW |
Input voltage | 3 phrase 380V |
Power frequency | 50HZ |
Current Plasma | 15A-200A(Optional) |
Interface | USB |
Working Mode | untouched arc striking |
PS
1. We have service in both English and Russian languages.
