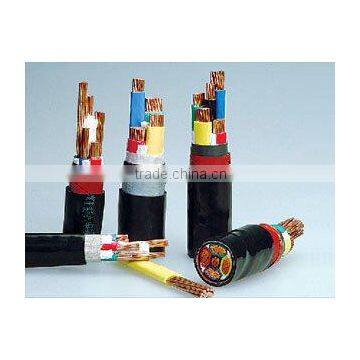

Standard for PVC/XLPE Insulated Electrical Cable Three Phase/ Electrical Cable Specifications

Hongliang PVC/XLPE Insulated Electrical Cable Three Phase/ Electrical Cable Specifications is manufactured according to the standard of GB12706 or IEC,BS,DIN and ICEA upon request.

Applications for PVC/XLPE Insulated Electrical Cable Three Phase/ Electrical Cable Specifications

Our XLPE Insulated Electrical Cable Three Phase/ Electrical Cable Specifications is suitable for use in power distribution lines or fixed installations with rated power frequency voltage up to and including 0.6/1kV

Operating characteristics for PVC/XLPE Insulated Electrical Cable Three Phase/ Electrical Cable Specifications

1.Rated power-frequency voltage Uo/U of electrical cable : 0.6/1kV

2.Max.permissible continuous operating temperature of electrical cable conductor: 90°C

3.Max.short-circuit temperature of electrical cable conductor shall not exceed 250°C.(5s maximum)

4.The ambient temperature under installation should not below 0°C

5.The bending radius of electrical cable should not less than 15 times of electrical cable diameter.

Application:

XLPE insulation PVC sheath power cable is used indoor or outdoor, in tunnel, cable furrow or pipe. It able to bear external mechanical forces, but the attractive force during laying.

Standards: IEC502, IEC332-3

Conductor: Cu

Insulation: PVC (Premature Ventricular Contraction )

Sheath: PVC (Premature Ventricular Contraction)

Sheath Color: Black or Gray (Bespoke cable)

Bending Radius:

Single core: 20D ± 0.05, multi-core: 15D ± 0.05

Temperature Rating: 0°C to 90°C

Flexible Cables

1.Flexible Cables in different technical specifications are available with us.

2.These cables have a contact construction, they are rugged, but flexible for industrial use and have high temperature insulation.

3.Our range of Multicore Flexible Cables can be availed in different types of insulation like Standard .

4.Heat resistant PVC up to105° C and Standard PVC Of FRLS, which finds varied application in the electrical industry.

5.Available in standard width, these multicore flexible cables are offered at competitive prices.
