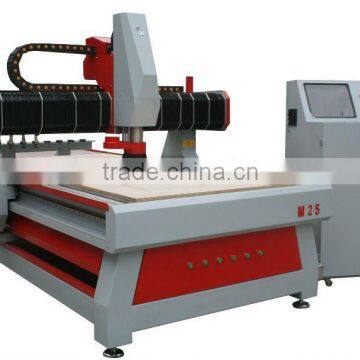

automatic tool change cnc router for furniture carving with Italy HSD spindle M25H
- Qingdao port China
- T/T
You May Like
-
mini metal cnc router 3d cnc stone sculpture machine industrial stone cutting machines 3d stone carving cnc machine
-
stone sculptures machine / granite engraving machine / marble cnc router
-
hot selling M25H SUPER STAR cnc router machine with ATC
-
1325H multi--functional cnc woodworking center
-
M25 wood- working machine with ATC(fixed back of table)
-
Hot sale!!! SKM25 cnc router with ATC vacuum system and best price
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | super star | |
| Model Number | M25H |
Product Description
Specifications
automatic tool change cnc router:1.Linear type ATC system
2.Japan servo motor
3.Taiwan LNC control
4.imported square guide
automatic tool change cnc router
Configuration:
Whole steel structure
Imported Linear squre guide way
XY gear wheel Z ballscrew
Type: linear auto tool changing with eight tools in line
Ncstudio NK200 control system
Type3 software
5.5 KW water cooling spindle with constant power
6 separate vaccum suction table
Auto oiling system
5.5KW water pump
Taiwan Delta Servo motor driving
Dust proof
Applicable industry:
wooden industry:
Sheet plane, three-dimensional wave board processing, screen, craft fan window processing,cabinet doors, solid wood door, craft door, paint-free door carving,cutting,engraving,drilling and other processing.
Other industry:
Building model,wooden model,wooden aviation model, propeller, car foam mold,violin,erhu and other instruments three-dimensional surface,shape cutting and surface pattern carved musical instrument,calligraphy plaque,carved frame.
This machine can engrave a flower -shaped carved door skin in three minutes with the speed 20m/min,three minutes to complete, if change the tool need to add 20s to each door, so it can complete 150pcs door skin, 75pcs door in one day (eight hour)
Technical Parameter:
No. | Description | Parameter |
1 | X,Y working area | 1300*2500mm |
2 | Z working area | 200mm |
3 | Working Accuracy | 0.05mm |
4 | Repositioning Accuracy | 0.05mm |
5 | Frame Structure | Welding Steel structure |
6 | Table type | Vacuum Table |
7 | Max traveling speed | 50000mm/min |
8 | Max working speed | 25000mm/min |
9 | Interface | COM32 |
10 | Command | G code file, *.U00, *.plt,*.mmg,*.nc |
11 | Surroundings for software | Windows 98/2000/XP |
12 | Working voltage | 3PH AC380V/50HZ |
13 | Spindle rotating speed | 0-24000rpm/min |
14 | Drive Motor | Taiwan Delta servo motor |
15 | Carving diameter | 3.175/4/12.7mm |
16 | Operation system | Taiwan Ncstudio control system |
17 | Gross weight | 1800kg |
18 | Packing Size | 330*230*190cm |
