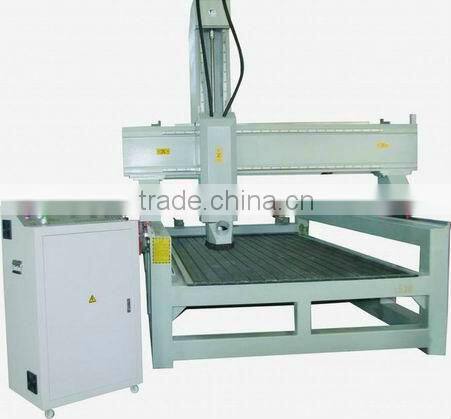

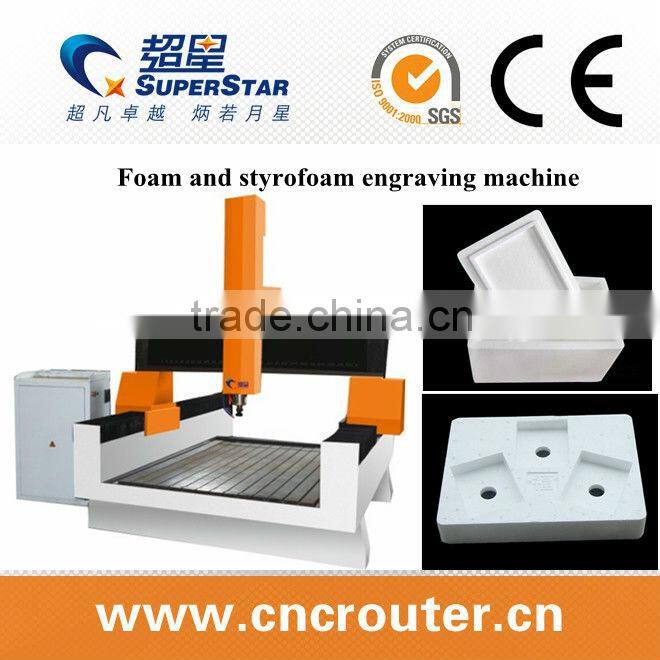

CX-2040 China 3D foam sculpture milling machine industrial foam machinery
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
CX-2040 China 3D foam sculpture making machine industrial foam machinery
-
2013 new product NC woodworking lathe and all-in-one engraving machine
-
China high efficiency stair handrail cnc machine with 8 spindles with function of milling and engraving
-
Affordable 4th axis cnc router of best price with CE,ISO certification engraving pillar
-
4th axis cnc router of best price with CE,ISO certification engraving pillar
-
Foam Industry Cutting machine with model 2550
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SUPER STAR | Model Number | CX-2040 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
3D foam sculpture milling machine1.anti-transgress-process protection system.
2.high precision
3.Z axis 750mm
4. CE, ISO
CX-2040 China 3D foam sculpture milling machine industrial foam machinery
Features
1. Imported widen square-shaped orbit, two-line sliding track, heavy bearing, high precision and high power. 3D foam sculpture
2. Z working area can reach up to 750mm, extensive processing area, suitable for the large thick materials processing.
3. Intelligent anti-transgress-process protection system. This function can prevent machine from crashing when the design zone is beyond the process zone.
4. Intelligent processing, traveling and cutting speed control. It can increase the efficiency, so improves the quality of finished products. 3D foam sculpture
Application
This mold is mainly used for the following two industrial fields. 3D foam sculpture
Firstly, molds industrial: It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds.
Secondly, musical instrument industry: Engrave 3-D large instruments and shaping
Technical Specifications
X, Y working area | 2000mm*4000mm (Optional) |
Z working area | 750mm |
X, Y Z axis structure | X, Y gear-wheel , Z ball screw |
Table Structure | Cast iron |
Processing precision | ±0.05mm |
Reposition Precision | ±0.05mm |
Traveling speed | ≥50000mm/min |
Processing speed | ≥25000mm/min |
Spindle rotating route | 0-18000r/min |
Spindle power | 6.0 kw |
Working voltage | AC380V/50Hz |
Drive motor | Servo |
Detailed pictures

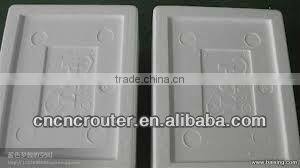

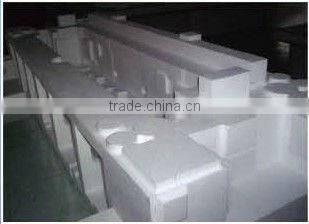

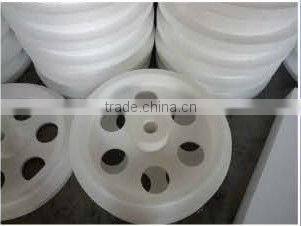

Samples

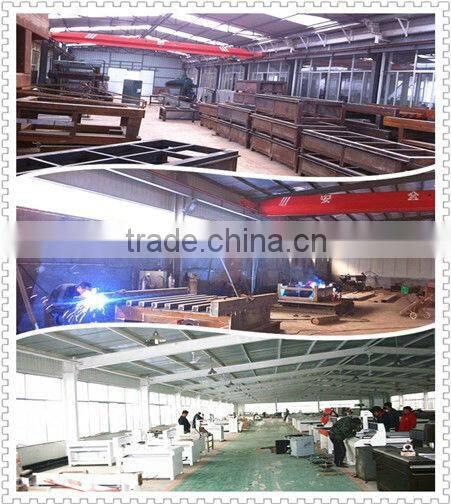

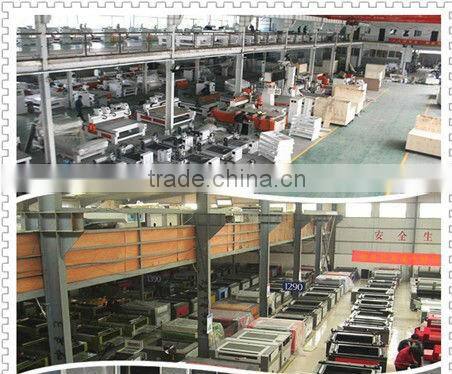

company showing
Please feel free to contact me
Tel:+86-531-86972093 Fax:+86-531-86972960
Skype: jinshengxingsales11 MSN: jinshengxingsales11
