Home > Products > 4-axis & styrofoam carving machine > Super Thick Styrofoam Cnc Machine With High Precision
Super Thick Styrofoam Cnc Machine With High Precision
- Qingdao Port China
- T/T
You May Like
-
Economic Automotive Styrofoam Cutting Machine China
-
Lux Automotive Foam Mold Cnc Router
-
CX1325 Heavy-duty Four Axises Rotary CNC Engraving Machine (the Hot Production)
-
CX1325 China Heavy Duty Cnc Router 4 Axis Rotary
-
CX1325 China Heavy Duty Cnc Router Four Axises Rotary
-
China Light 4-axis Cnc Router Servo Drive
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Super Star | |
| Model Number | CX-2550 |
Product Description
Specifications
super thick styrofoam cnc machine1 CE, FDA certificate
2 higher precision
3 ball screw for three axis
4 high power spindle
About us:
Superstar Machinery is a high-technology enterprise which is specialized in developing and manufacturing advanced high grade CNC Router. Having around 10 years’ experience and two large-scale factories, our company ranks in the front of the fields and enjoys good honor from worldwide. Meanwhile, our products has been granted CE and ISO certificate. Now we have three main series machines and around 50 models: CNC engraving machine, 3D woodworking machine and laser engraving machine. And we wish you knew that perfect quality and good after-sales service is our specialty.

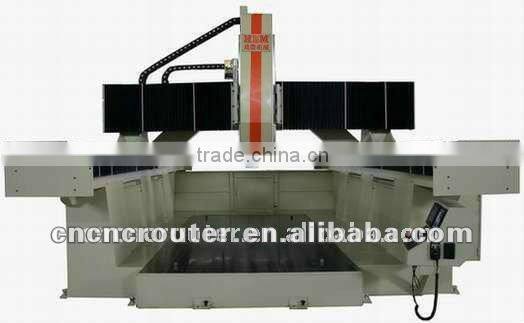

This super thick styrofoam cnc machine with high precision has the following features:
1. ball screw for X,Y,Z three axis, high precision, heavy, steady and durable
2. This mold machine is one GDF automotive foam mold machine, also a customized models. We can design according to your request
3. Z axis working area can be added to 1m, suitable for large and super thick materials
Application:
This machine is mainly used for the following two industrial fields:
(1) molds industry: It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds.
(2) musical instrument industry: engrave 3D large instruments and shaping
Technical Specification
Model | CX-2550 |
X,Y,Z working area | 2500*5000mm |
Z working area | 1000mm |
Working accuracy | 0.05mm |
Repositioning accuracy | 0.05mm |
X,Y,Z structure | Ball screw |
Max. travelling speed | More than 16m/min |
Max. working speed | More than 10m/min |
Spindle power | Water cooling 7.5KW |
Spindle speed | 100-10000rpm/min |
Drive system | Servo |
Working voltage | AC380/50HZ |
Command language | G-code, F/S |
Operating system | Taiwan LNC or Ncstudio |
Gross weight | 12t |
