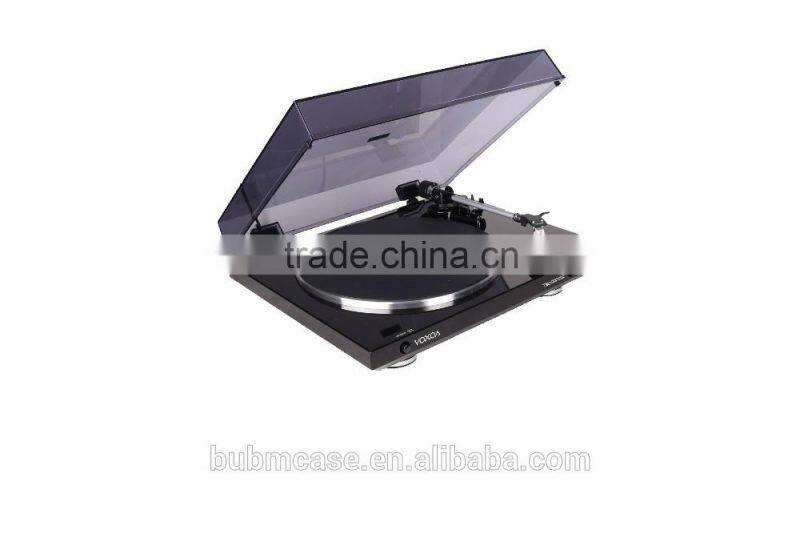

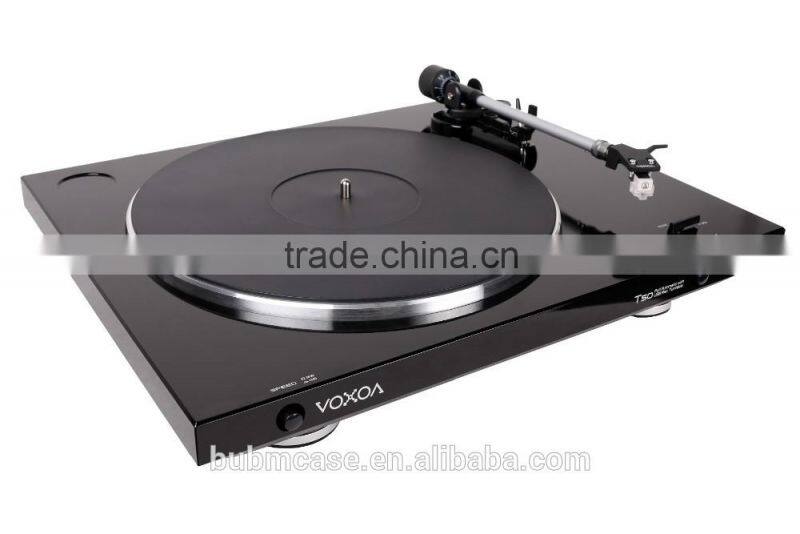

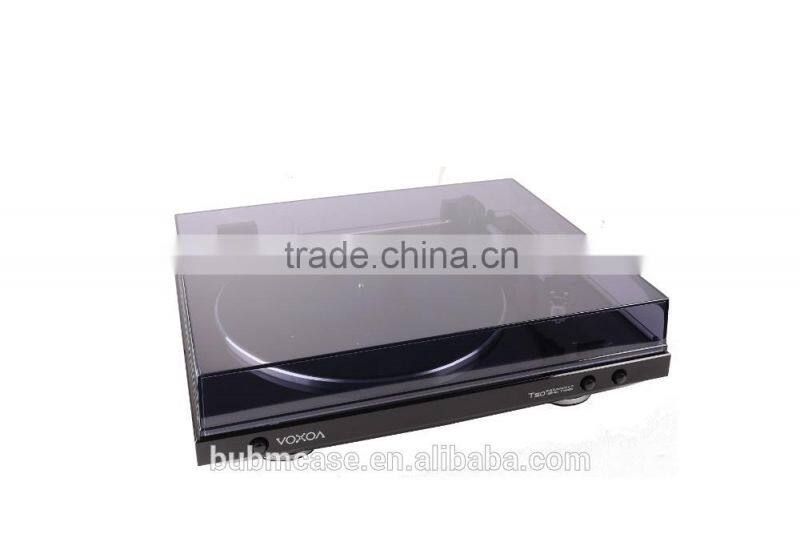

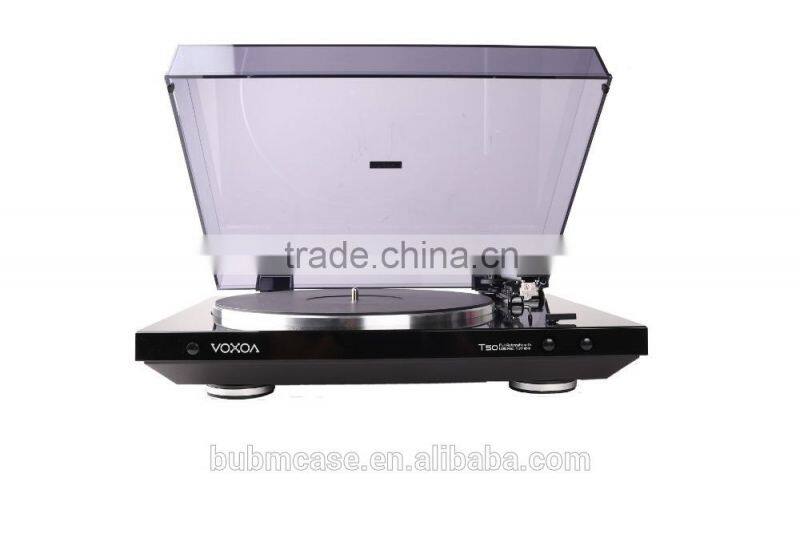

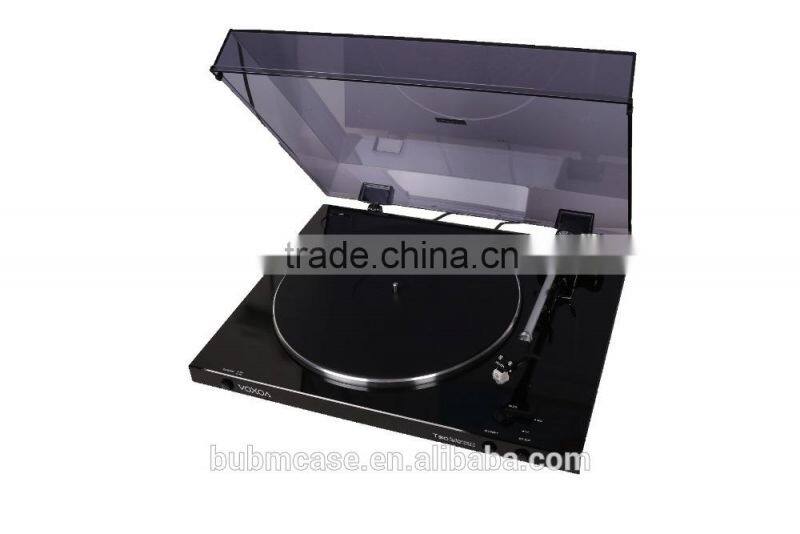

VOXOA T50 Full Auto USB Gramophone Phonograph Vinly DJ Turntable Record Player

 WARMLY WELCOME TO VOXOA HIFI WORD----VOXOA T50 FULL AUTO TURNTABLE

VOXOA T50Full Automatic withUSB Rec.Turntable

belt drive and full-auto operation

Adjustable counter-weight and straight tone arm

Cartridge could be changed (AT cartridge AT3600L inside)

High quality glossy piano painting,

High-precision aluminum platter with fever rubber mat

Built-in RIAA amplier circuit and PHONE / LINE switch

USB high sound quality output, without any driver,

USB audio output compatible with PC / MAC

Attached recording software Audacity



GENERAL SPECIFICATIONS

Power supply : AC 115V/230V, 50Hz/60Hz

Power consumption : 2 Watts

Operating voltage : DC 12V

Dimensions : 435 (W) x 372.5 (D) x 121.5 (H) mm

Weight : 4 Kg

TURNTABLE SECTION

Type:2-speed full-auto

Motor:DC motor

Driving Method:Belt drive

Turntable Platter:296mm dia. Aluminum diecast

Speeds:33 1/3 and 45 rpm

Wow and Flutter:Less than 0.25% (WTD) at 3KHz (JIS)

Signal to noise Ratio:More than 50 dB (DIN-B)

Speed Tolerance:3000 Hz +3% -2%

USB Function:USB REC. Function

A/D,D/A:16BIT 44.1KHz or 48KHz USB SELECTABLE

Computer interface:USB 1.1 COMPLIANT WINDOWS / MAC

TONEARM SECTION

Type dynamic balanced w/counterweight control

Effective Arm Length 221.5 mm

Tracking Error Angle 3 degree or less

Stylus pressure adjustment method Rotation movability(1-4g)

Applicable cartridge weight 14.5~20g (Including Head shell)

Anti-skating adjustment range 0~3g

Arm lifter Oil damper type

CARTRIDGE SECTION

Type Moving magnetic cartridge

Stylus Diamond stylus

Channel Separation More than 15dB at 1KHz (HP-4005)

PHONO Output Level 1.5~3.6mv at 1KHz 5 cm/sec (HP-4005)

LINE Output Level 129~313mv at 1KHz 5 cm/sec (HP-4005)

RIAA 20~20KHz +1/-3dB

Tracking Force 3.5 ±1 g

ACCESSORIES
Check for the following parts included in the package with the main unit:
Platter (with belt) 45 RPM adaptor Turntable rubber sheet
Dust cover Hinge Counter weight Instruction manual
Headshell with Cartridge USB Cable

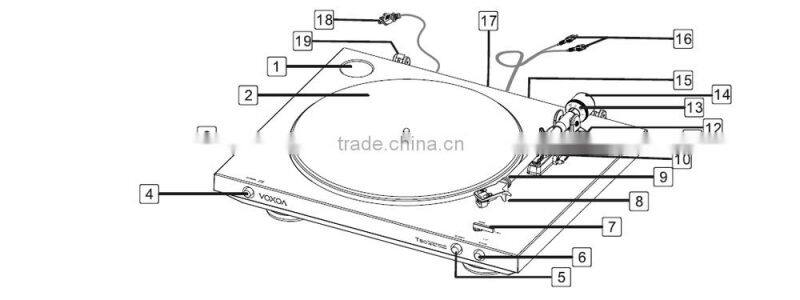

1. 45-RPM Adaptor
This adapter allows you to play standard 7” EP vinyl records with large center holes. Place the adapter on the
CENTER SPINDLE 7" records.
2. Turntable Platter
This platter connects directly to the center spindle. The platter and center spindle holds a vinyl record perfectly
center. The platter also spins the record at a consistent speed.
3. Center Spindle
This spindle holds the turntable PLATTER records stable and centered.
4. Speed Select Button ( )
Set according to the speed (revolutions per minute) of the record to be played.

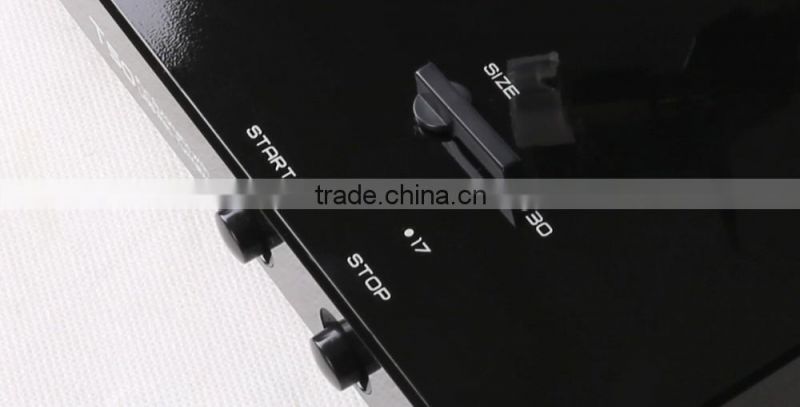

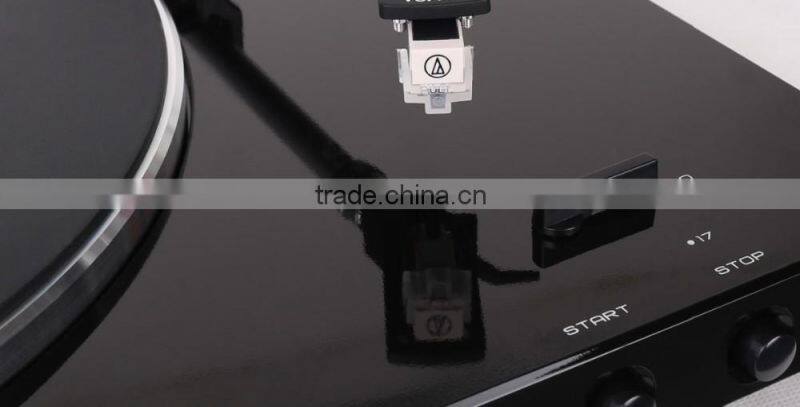

5. Start Button
Starts playback.
6. Stop Button
Stops playback.
7. Size Selector (17/30)
Set according to the size of the record to be played (30cm or 17cm).

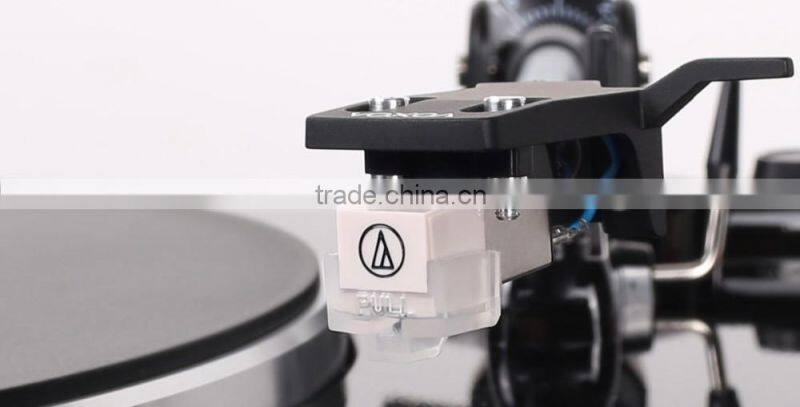

8. Headshell
The included HEADSHELL is used to connect your stylus with the tone arm.
9. Tone Arm
The tone arm is the mechanism that holds the HEAD-SHELL and stylus allowing it to glide across a record.

10. Tone Arm Clamp and Rest
Use this rest to safely hold the tone arm in position during non-use and transportation.
11. Anti-skate Knob
The anti-skate apply inward force to the tone arm to prevent outward skipping across the record due to
the centrifugal force cause by platter rotation. The anti-skate value should be equally to that of the stylus
counterweight pressure.
12. Tone Arm Lever
This lever is used to safely elevate the tone arm above a record surface without endangering a records surface.

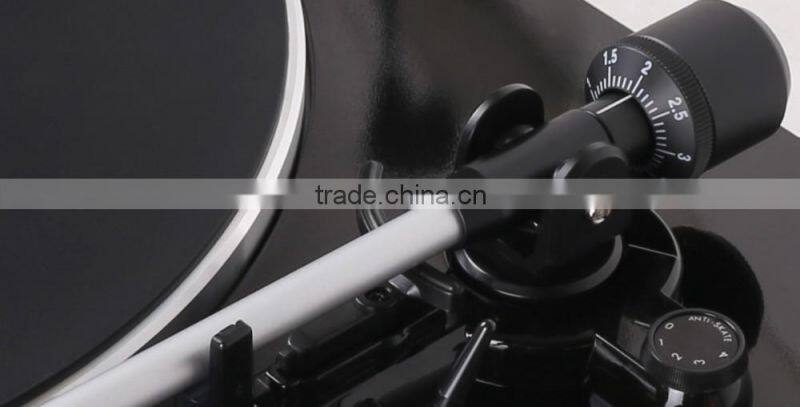

13. Stylus-Pressure Adjustment Ring
The counterweight scale must face toward the DJ.
14. Counterweight
Use the counterweight to balance the tone arm and to adjust the stylus pressure.

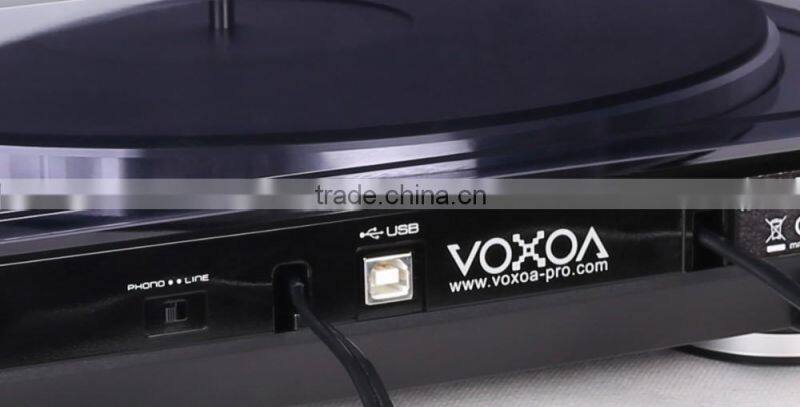

15. Phono/Line Selector
This switch is used to change the mode of phono output or line output.
16. RCA Cable
The output is able to switch to PHONO output or LINE output. For example: These jacks are used to send
a low voltage "phono" level output signal to a mixers "PHONO" input jacks. Turntables should be connected
to “PHONO” inputs on a mixer. The red colored RCA jack represents the right channel input and the white
represents the left channel input.
17. USB Socket (USB cable limit within 3m)
After connecting the Turntable to the computer via USB, you can record your vinyl to your hard disk using
software.
18. AC Power Supply Cord
19. Hinge For Dust Cover
