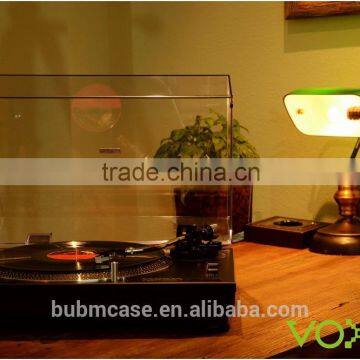

VOXOA T60 Professional DJ Audio Turntable With High Torque 3 Speed & Pitch

VOXOA T60

High Torque Direct Drive Motor DJ  Portable Vinyl Turntable Player

• High Torque Direct Drive Motor:1.6 Kg.cm
• Variable speed 33,45,78 rmp with quartz lock
• Switchable forward and reverse play mode
• S-Shaped tone arm and anti-skating adjustment
• Vibration resistant construction
• Forward and reverse palyback
• Super bright LED illumination
• Pitch Range +/- 10% and +/- 20%
• Pitch lock
• Phono and line output (with grounding connector)

Specification
Features
All specifications and apprerances are subject to change without notice. VOXOA reserves the rights to change the design for products imporvement.
Direct-Drive
T60Turntable
Power: AC100~240V 50/60 Hz
Consumption: 13WATTS
Dimension: 450mm(W)x352mm(D)x144mm(H)
Weight: 9.8 Kg
3-speed full manual
 Motor : 16pole, 3phase
 Driving : Direct drive
 Speed : 33 1/3 and 45 rpm and 78rpm
 Starting torque : More than 1.6kgf.cm
Pitch controls : +/- 10%,+/- 20%
 Cartridge: AT-3600L
 Output:1.5~3.6mV at 1KHz 5cm/sec
 Frequency response: 20Hz~20KHz
 Channel separation: more than 15dB
 Channel balance : Within 2.5dB at 1KHz

1.Come with Audio-Technica AT-3600L

2.Variable speed 33,45,78 rmp

3. Pitch Range +/- 10% and +/- 20%

4. Forward and reverse palyback

Tonearm section (Cartridge: AT-3600L)
Type : S-shaped
Effective arm length : 230.5mm
Tracking error angle : Less than 3 degree
Anti-skating range : 0~7g
Applicable cartridge weight : 13 ~18g (Including
Headshell )
output : 1.5~3.6mV at 1KHz 5cm/sec (HP-4005)
output : 90~216mV at 1KHz 5cm/sec (HP-4005)
Frequency response : 20Hz~20KHz
Channel separation : More than 15dB
Channel balance : Within 2.5dB at 1KHz

Accessories supplied
- 1 Counterweight
- 1 Headshell
- 1 Platter
- 1 45 rpm adaptor
- 1 Slipmat
- 1 AC cord
- 1 Audio cable
- 1 Dust Cover
- 2 Hinge
- 1 Cartridge
- 1 User Manual

PART NAME AND FUNCTIONS

1. 45 RPM Adapter
For 45 RPM records, place the 45 RPM adapter on the center spindle before placing the record on the platter.
2. Phono/line switch
Depending on the position of the phono/line switch,you can connect the turntable to any phono or line level input.
3. Strobe dots
The dots around the edge of the platter are used in conjunction with the light located inside the power.
While the platter is in rotation, the dots help to indicate the speed of rotation. The speed is lower
than the displayed speed (33,45,78) when the dots are fl owing to the right. It is higher than the displayed
speed (33,45,78) when the dots are flowing to the left. When the strobe is stopped, the platter is
rotating at the displayed speed.
4. Power ON/OFF
On - Rotate Right. Off - Rotate Left.
5. Start/Stop button
Press this button to start or stop the platter.
6 . Platter revolution speeds
33 rpm – Press 33
45 rpm – Press 45
78 rpm – Press 33 and 45 buttons simultaneously.
To return to 33 or 45-rpm play mode, just press the
desired button.
7. Target light
Insert target light to the deck and it will light up.
8. + /-10%, 20% button
Press the button to switch to 10% pitch and light on.Press the button to switch to 20% pitch and light on.
9. Quartz button
This button is used to turn the pitch function on and off. When the Quartz function is activated the
platter will hold the RPMs at 0% pitch, regardless of the Pitch Slider. When the quartz function is inactive
the Pitch Slider may be used to manipulate platter speed.
10. Pitch slider
Use this to change the speed of the platter when the PITCH indicator is lit.
11. Direction button
Controls platter’s rotational direction:
F – Forward (clockwise)
R – Reverse (counter-clockwise)
12. HEADSHELL RECEPTACLE
Storage receptacle for extra headshell (not included).
13. Phono output
This is the standard analog output (RCA jacks), which can be connected to phono input on any DJ
mixer.
14. Power cord connector
Used to connect the included power cord.

15. Stylus headshell
The included headshell is used to connect your stylus with the tone arm.

16. Headshell locking nut
Attach headshell by inserting into the front end of the tone arm, then turn the locking nut clockwise with the head shell fi rmly held horizontally.
17. S-shaped tonearm
S-shaped tone arm geometry reduces tracking error.
18.TONE ARM LIFT ADJUST SCREW
Used to set the armount of tone arm lift.
19. Tonearm clamp and rest
Use this rest for the tone arm and clamp it in position during transportation.
20. Tonearm lever
Controls the up and down action of the tone arm lift.
21. Anti-Skate control
This applies inward force to the tone arm so it doesn't skip outward across the record due to the centrifugal force of the record spinning. Cartridge
manufacturers usually specify the proper setting of this.
22. Counterweight
Adjustment creates the proper downward pressure of the stylus to the record.
Attach now by sliding the counterweight onto the rear of the tone arm. Twist it
lightly and it will screw onto the rear shaft of the tone arm.
