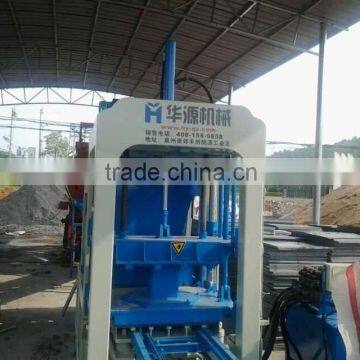

Full automatic QT Concrete brick machine production line QT5-15 paving brick forming machine
- xiamen
- T/T
You May Like
-
Buy cheap hollow bricks making machine from Huayuan Machinery--- QT6-15 cement concrete brick machines
-
2013 HYM Full automatic brick building machine QT4-15 concrete building bricks making machine south africa
-
Automatic Pallet Loading Machine for block making plant
-
PVC Pallet, for block making machine
-
Low price hot sales QT4-15 block machine for making paver for sale
-
Most popular chinese big full automatic brick making machine qt6-15
Product Details
| Type | Hollow Block Making Machine | Brick Raw Material | Concrete | |
| Processing | Brick Production Line | Method | Hydraulic Pressure | |
| Automatic | Yes | Capacity | 20sets per month | |
| Place of Origin | Fujian, China | Brand Name | HYM | |
| Model Number | QT5-15 used brick making machine for sale | Voltage | 220V/380V | |
| Power | 37.4KW | Dimension(L*W*H) | 9450*3300*2700MM | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.siemens PLC controller2.anti-wear, aseismatic,anti Moist welding
3.high temperature carburizing heat treatment mold
Full automatic QT Concrete brick machine production line QT5-15 paving brick forming machine
1.Advantages of QTY5-15 concrete brick making machine production line
1) Skip adjusting mechnism |
2) Skip connection rod |
3) The Supporting Beam of the Vibration Platform/Motor of the Vibrator |
4) Swing beam paller sending device |
5) Arch breaker instutions |
6) Synchronous Demoulding System |
7) Lengthening sleeve guide |
Component of Production line:
Host machine, PLC control unit, Belt conveyor, Automatic stacker,JS500 Mixer,PL1200 Batching machine, Cement silo (50T),Screw conveyor, Cement scale, Water scale, Pallet
2.Specification and output of QTY5-15 hollow brick machine :
| Cycle Time | 15-20(s) | Vibration Type | hydraulic vibration |
| Total Power | 37.4(kw) | Vibration | 150(KN) |
| Vibration Frequency | 3800-4500 | Gross Weight | 14200(kg) |
| Pallet Size | 1100×560×20(mm) | Machine Size | 9450×3300×2700(mm) |
| Rated Pressure | 25(mpa) | Stacking Machine Power | 2.25(kw) |
3.Capacity material of QTY5-15 concrete brick machine production line
| Block Specification | Size | Production per Mould(pcs) | Production per Shift(8 hours) |
| Multi-holes Block | 240x115x90mm | 16 (pcs) | 23040-30720(pcs) |
| Standard Block | 240x115x51mm | 34 (pcs) | 48960-65280(pcs) |
| Hollow Block | 390x190x190mm | 5 (pcs) | 7200-9600(pcs) |
| Color Paver Block | 200x100x60mm | 18 (pcs) | 21600-25920(pcs) |
4.Raw material of QTY5-15 concrete brick machine production line
Cement:8-10%, sand 30-40%, stone power:60%
fly ash,steel slag,construction waste, boller slag,coal gangue,mountain flour coal Gangue ect.
5.Detailed part dispaly of QTY5-15 hollow brick machine :
6.Our hollow brick machine clients all over the world :
7.Contact us
