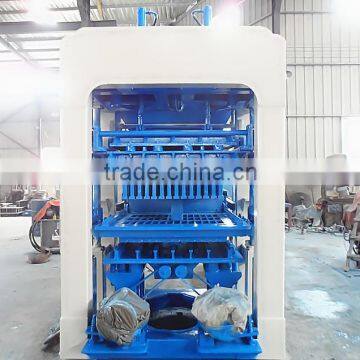

Energy-saving 24-hour keep working Baking-free Blind Hole eco brava interlock brick making machine

Equipment superiority:

1) Materials car link, whole casting, durable and beautiful appearance.

2) When loading materials, kick fork shakes quickly and repeatedly by a special angle to fill the mold with materials. Kick fork is made by strong cast steel and can be replaced.

3) It uses gear and rack to strip the molds and rise and drop steady.

4) Add two extended orientation sets to make the press head working steady and synchronously, extend the usage life.

5) Welded with thick steel plate, it is solid and durable with removable connection.

6) It is a heat-resistant motor which can continue work freely under 130°C for a long time and limited to 180°C.

7) PLC system and Touch screen are made by Siemens from Germany. It has humanized operation interface and advanced automatic fault diagnosis system.

8) There are four movable columns, Synchronous and steady stripping. The slider and the guide pin with tapered position sleeve connection, removable side. Pressure head, the upper and lowe die boxes were set screw stopper position, positioning accuracy, better products, and a high degree of consistency.

9) Release the two curtains in the long slot before adjusting, turn the lifter to adjust the working plate to certain height and lock it, that is convenient, accurate positioning and reliable.

10) By using the structure of crank linker, it makes the crank circular motion become frame linear motion. Keep the pallets steady when producing.

11) The block it produced has high density and intensity, This machine is free pallets.

Technical Specifictions:

Production capacity

Hollow brick       390x190x190mm     6pcs/mould

Standard brick   240x115x53mm       30pcs/mould

Paving brick       200x100x60mm       21pcs/mould

Cycle time

10-15s

One hour output

Hollow brick       390x190x190mm     1440pcs/hour

Standard brick   240x115x53mm       7200pcs/hour

Paving brick       200x100x60mm       3780pcs/hour

Shift output

Hollow brick       390x190x190mm     11520pcs/8 hours

Standard brick   240x115x53mm       57600pcs/8 hours

Paving brick       200x100x60mm       30240pcs/8 hours

Power

37.4KW

Weight

7.5T

Dimension

3000x1700x2400mm

Pallet Size

850*680*20mm

Vibrating force

68KN

chnological Process

 Material → Activation→ Batching → Mixing →  Conveyance

                                                                                     ↓

Delivery   ← Curing ←      Palletizayion        ←    Moulding

1) Skip adjusting mechnism

2) Skip connection rod

3) The Supporting Beam of the Vibration Platform/Motor of the Vibrator

4) Swing beam paller sending device

5) Arch breaker instutions

6) Synchronous Demoulding System

7) Lengthening sleeve guide

Items of investment

Component of production line

            Quantity

QTY6-15 Block Making Machine

1

Automatic brick converyor machine

1

Automatic pallet feeder

1

Hydraulic unit

1

Control system(German Simens)

1

Conveyer Belt

1

JS500 Mixer

1

Free mould

1

Batching plant PL1200

1

Products

Various types of concrete blocks, standard bricks, perforated bricks and paving bricks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products. slab, edger, kerbstone, grass blocks, solpe blocks, interlocking blocks. These products are of good quality, high compression strength and accurate dimension. Besides, more kinds can be produced such as color paving bricks, color grassland bricks and curb bricks if the second raw materials feeding system is added to the line. Widely used in building, road paving, squares, gardens, landscaping. city constructions etc.

Raw materials

Materials such as sand, crushed stone, cement, dust and fly coal ash, cinder, gravel, perlite, wet ash in power plant, dry ash, hybrid ash, boiler slag, spontaneous combustion coal gangue, mountain flour, haydite, mine tailings, scoria, steel slag, carbide slag, water-granulated slag, wind-granulared slag, dry slag, smelting slag, sulfuric acid residue, phosphate fertilizer slag, caustic sludge, laterite in aluminum manufacturers, electrolytic copper slag, stonework waste, potsherd, waste brick power, construction waste, etc(among which one or two kinds are enough)
