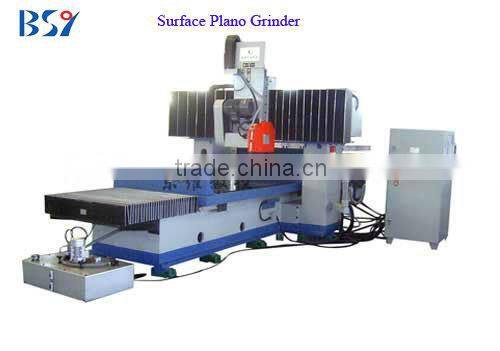

Surface Plano Grinder

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	BSY
Model Number	MK1220	Rated Power	52KW
Weight	15000KGS

Product Description

Specifications

Max grinding size 2000x1200 x600mm
Working table size 2000x1200mm

M1220A Planogrinder is the popular type of surface grinding machine,which adopts portal frame structure with good rigidity. Sand wheel spindle adopts rolling bearing with high precision and high speed lubricant, which makes the spindle system with great rigidity, high precision and long duration. The sand wheel is with big diameter and high grinding efficiency.

The machine aims to meet operators requirement as more as possible, the overall layout of the whole machine including lathe, electricity and hydraulic system is very properly make the operation and installation workpiece work safely and conveniently. The button of hydraulic parts and electrical parts are designed and set according to users’ operating habits and requirement. It can be manual or power-driven, easy to operate, reliable in performance and easy to repair.

Specification	M1220
Max grinding size (L×W×H)	2000×1200 ×600mm
Working table size (L×W)	2000×1200mm
Max worktable route	2200mm
Operation speed of worktable	3--25m/min
Max height for workpiece through portal frame	600mm
Max width for workpiece through pedal frame	1500mm
Sand wheel size(outer diameter×hole diameter×width)	500×203×50mm
Sand wheel spindte rotation speed	1150
Grinding carriage perpendicular move route	600mm
Grinding carriage moveroute along beam	1500mm
Vertical feeding of a hand wheel per revolution	0.25mm
Vertical fast lifting speed of sand wheel	340mm/min
Continuous move speed of sand wheel along beam	0.4--2.5m/min
Step feeding of sand wheel along beam when worktable inverts	3--30mm/min
Oil pump flow	56liter/min
Hydrautic system working pressure	3MPa
Oil pump motor power	4KW
Sand wheel spindle motor power	7.5KW
Cooting pump type	DB-25A
Overall size(L×W×H)	6000×2720 ×2600mm
Weight	15000Kg
