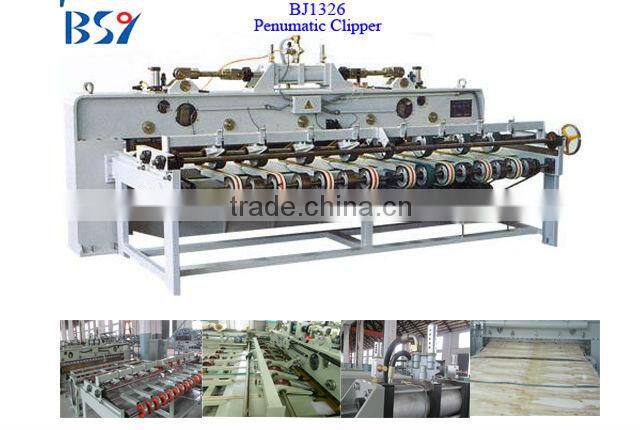

BJ1326A CNC Veneer Shearing Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, plywood machine
Place of Origin	Shandong, China	Brand Name	BSY
Model Number	BJ1326A	Voltage	according to your requirement
Power(W)	cuting motor 4kw	Dimension(LWH)	3710x1580x3020
Weight	2800kg	Certification	ISO9001, CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Veneer pneumatic clippr
2.Max number of shearing:70 t/min
3.Slmple and easy to operate

1. The Pneumatic Veneer Clipper/ Veneer Sharing machine is a principal machinery in veneering and/or plywood procession industries.

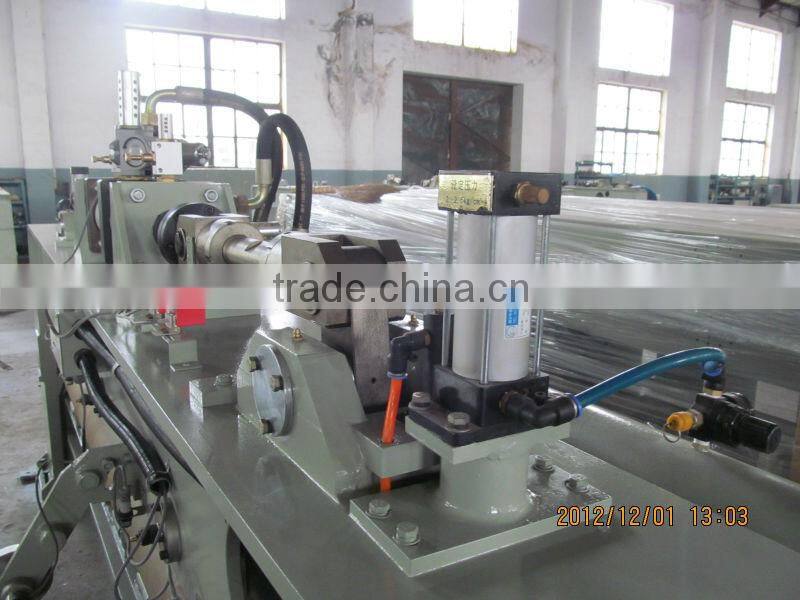

2. Cutting with pneumatic system, controlled by PLC system, easy to operate and maintenance.

3. Energy saving and high efficiency.

Model	BJ1326A	BJ1320
ing width(mm)	2650	2050
Open distxince (mm)	55	55
Max.number of shearing(t/min)	70	70
Feed speed (m/min)	0.6-6 6-60	0.6-6 6-60
Feed Motor (kw)	4	3
Overall dimensions (mm)	3710×1580×3020	3110×1580×3020
Weigth(kg)	2800	2600

Why do you choose us:

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

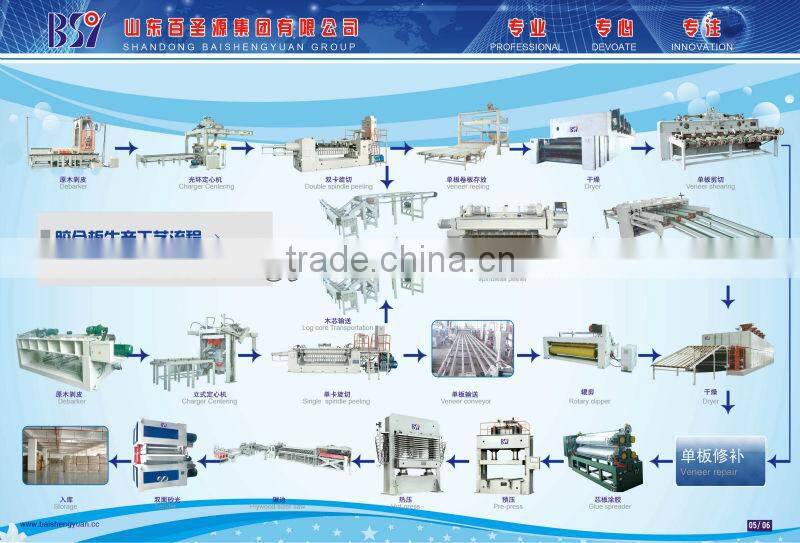

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four-Side Moulder , Rip Saw, Finger Jointer Line, Profile Grinders, Double Side Planer, Surface Planers, Band saw , sanding machine etc.
