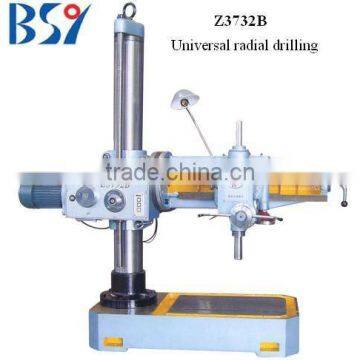

Z3732B Universal radial drilling machine
- Qingdao
- T/T
You May Like
Product Description
Specifications
It can move from left to right in the main shaft, and along the horizontal rails and upright posts.Specification | Z3732B |
Max.drilling diameter | 32mm |
Morse taper of main shaft bore | 3 |
Movable stoke of main shaft | 130mm |
Max.drilling from main shaft centerline to post trunk | 315-815mm |
Horizontal movable stoke of main shaft | 500mm |
Drilling from main shaft face to base plate | 25-870mm |
Main shaft stroke on post | 845mm |
Turning angle of main shaft normal to the post level line | 360o |
Turning angle of cross arm around post | 360o |
Value on dial | 4 |
Speed grade of main shaft | 173-960 |
Area of base plate | 580×450mm |
Motor type | Y90L-4 |
Motor power | 1.5KW |
Motor revolution | 1410 |
Outline size (LxWxH) | 1800x680x1991mm |
