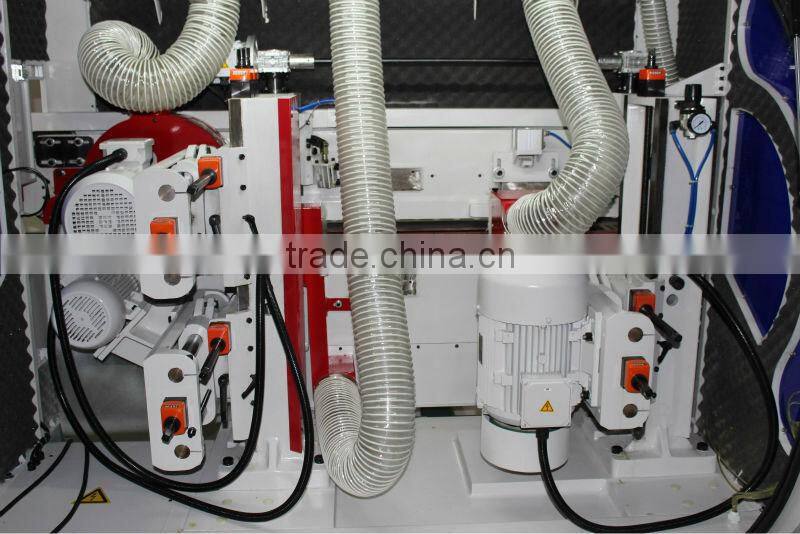

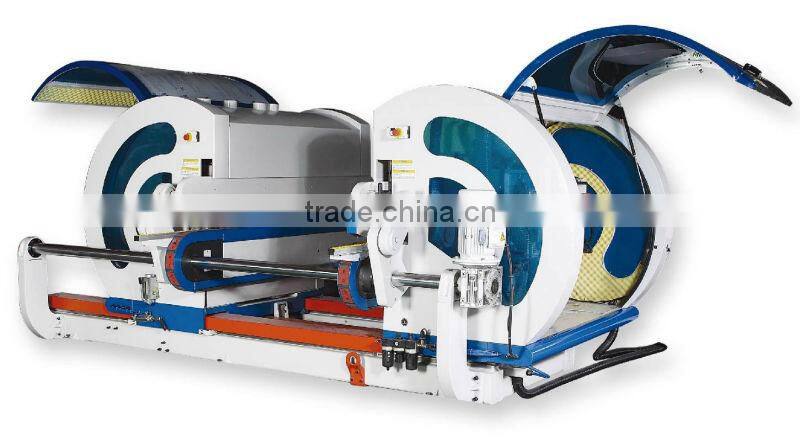

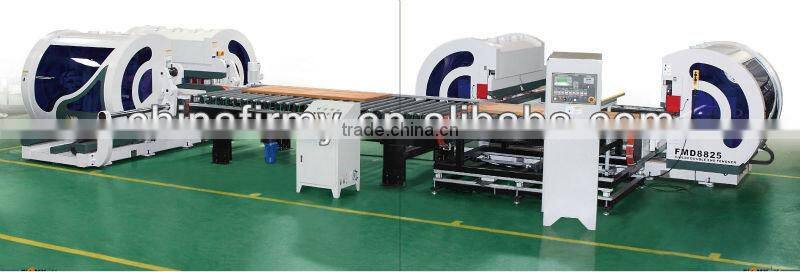

FMD8825 Double End Tenoner Machine
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, wood working machine | |
| Place of Origin | Guangdong, China | Brand Name | FIRMY | |
| Model Number | FMD8825 | Certification | CE | |
| Warranty | One year for spare parts |
Product Description
FMD8825 Double End Tenoner Machine
Teachnical Parameter:
1.Working length(mm):250~2000
2.Working thickness(mm):6~80
3.OD for tools:
| scoring saw | cut-off saw | 1st milling cutter | 2nd milling cutter |
| Φ200 | Φ305 | Φ125~Φ180 | Φ125~Φ180 |
4.ID for tools:
| scoring saw | cut-off saw | 1st milling cutter | 2nd milling cutter |
| Φ25.4 | Φ30 | Φ40 | Φ40 |
5.Motor power:
| scoring saw | cut-off saw | 1st milling cutter | 2nd milling cutter |
| 2.2kw | 4kw | 4kw | 4kw |
6.Feed speed(m/min):5~30
7.Milling cutter speed(r/min):8000
8.Cut-off saw speed(r/min):3000
9.Total motor power(kw):35
10.Weight:5.7T
11.Size:4380×3300×1800
Advantage:
1.Machine base is over 1300mm width with high precision linear orbits.Steel dusty proof protects
the orbits as well.
2.Adopted the Servo motor system to keep high precision widening.
3.High precision lightweight convey belt is assembled with bearings.High feeding speed and less
noise,it is suitable for high speed processing.
