High pressure spray fog nozzles
USD $1 - $1.9
/ Piece
30 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
jet/fog nozzle
-
high pressure anti dirp humidifying nozzle,greenhouse micro fog nozzle
-
agricultural high pressure anti-drip nozzle,powerful garden fog nozzle
-
agricuture irrigation water mist nozzle,cooling system mist nozzle
-
high pressure mist nozzle fitting,3/8 mist nozzle kits
-
no drip misting nozzle,misting system fittings,non drip fog nozzle
Product Details
| Place of Origin | Guangdong, China | Brand Name | Mebon | |
| Condition | New |
Product Description
High pressure spray fog nozzles
Product Description

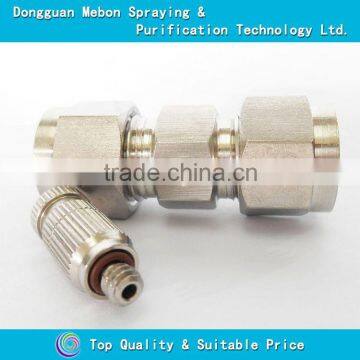

- Metal fog spray nozzle consists of brass/SS body with internal SS/ceramic core and stainless steel guide vane (with a leak-proof device).
- The liquid flows at high velocity under the water pressure of 70kg to 120kg, forming centrifugal swirl and spraying very fine hollow droplet.
- It is equipped with TEFLON strainer and the fog droplet sizes are about 30um.
- Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
- The imported US punching machine punches orifice about 0.15 to 0.5mm in size.
- The nozzle saves 10 times or above cost than that of moistening by air.
| Performance Data | |||
| Fog Nozzle | Orifice Diameter | Operation Pressure | Flow Rate |
| FD1 | 0.15mm | 20-70kg/cm | 20-46cc/min |
| FD2 | 0.20mm | 49-89cc/min | |
| FD3 | 0.30mm | 80-145cc/min | |
| FD4 | 0.40mm | 95-178cc/min | |
| FD5 | 0.50mm |
130-243cc/min | |
Commen Application:
1. Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
16.Humidify for other place
Product Show
Packaging
Strict export packaging for the goods.
Payment & Shipment
Our service
1. Reply your inquiry within 8 hours.
2. Samples could be sent free.
3. Delivery time within 7 days.
4. Best after-sale service
5. Payment Term:T/T , Western Union, L/C
6. Delivery Way: DHL/ UPS/FEDEX Express; Air/ Sea Transportation
