Metal fog cooling system tips,vegetable retain freshness fog nozzle
- 1000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
outside building fog system tips,cooling system water mist nozzle
-
Brass low pressure landscape fog nozzle,greenhouse mist system tips
-
PP humidifying fog nozzle,1/8 BSPT water mist nozzle,low pressure fog nozzle
-
low pressure misting kits,low pressure humidifying nozzle
-
Low pressure fogging system nozzle for humidification
-
low pressure misting humidity system nozzle,forestry micro fog nozzle
Product Details
| Place of Origin | Guangdong, China | Brand Name | Mebon | |
| Condition | New |
Product Description
Metal fog cooling system tips,vegetable retain freshness fog nozzle
Product Description

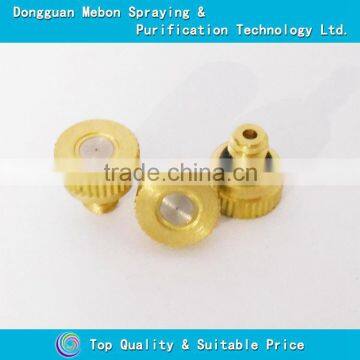

- Metal fog spray nozzle consists of brass body with SS orifice.
- The liquid flows at high velocity under the water pressure of 5 to 20 bar, spraying very fine droplet.
- The fog droplet sizes are about 50um.
- Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
- The imported US punching machine punches orifice about 0.2 to 0.5mm in size.
- The nozzle saves 10 times or above cost than that of moistening by air.
| Type | Orifice | Thread | Pressure | Flow Rate |
| FDS20 | 0.20mm | 3/16" | 7-20bar | 0.049-0.089L/Min |
| FDS30 | 0.30mm | 3/16" | 5-20bar | 0.080-0.145L/Min |
| FDS40 | 0.40mm | 3/16" | 5-20bar | 0.095-0.178L/Min |
| FDS50 | 0.50mm | 3/16" | 5-20bar | 0.130-0.248L/Min |
Commen Application
1.Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
Product Show
Dongguan Mebon Spraying & Purification Technology Ltd. was established in Dongguan in June, 2002. Our company is a professional manufacturer engaged in the design,development and sales of a variety of spray nozzles and filters.
Our company has professional technicians, complete production equipments and high qualified personnel, including 15 engineers, 60 technicians and 2 management staff members. Some of them have 10 years of industrial knowledge and experience about spray nozzles and filters.
Factory Building
Workshop
Packaging
Contact Us
- Dongguan Mebon Spraying & Purification Technology Ltd.
- Contact nameJackson Ng Chat Now
- Phone86-0769-81876596
- AddressXianxi Industrial Zone,Chang'an Town, Dongguan, Guangdong
