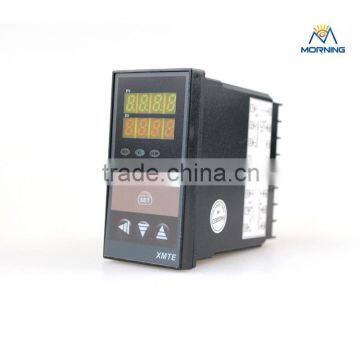

XMT Industrial PID Intelligent Digital Electrical Temperature Controller

  Any kind of TC, RTD's standard signal of current and voltage

(see the kinds sheet of input)

2. Accuracy

Measure accuracy

±0.5%FS

Cold-end Compensation deviation

in the range of ±2℃(0~502℃ can be amended by the software)

Resolving power

14bit

Sampling cycle

0.5 Sec

3. Display

PV,SV

-1999 ~ +1999

Indicatesof output,alarm,self-conditioning

LED

4. Controlling output

Current output

DC 0~10 mA, 4~20 mA (RL< 500Ω)

Voltage output

DC 0~5 V, 1~5 V (RL>10K)

Relay output

contact capacity 250VA (resistance load)

Voltage pulse output

0~12V, (suitable for the solid relay SSR)

Capacity of the output contact

250V AC 3A (resistant load)

5. Setting range

Setting value (SV)

Measured Present Value (PV)

Proportional band (P)

0 ~ whole measured range (when set 0, it's ON/OFF control

Integral time

0~3600 Sec (when the time is 0, the function of integral time closed)

Derivative time

0~3600 Sec (when the time is 0, the function of differential time closed)

Proportional term

1~100 Sec

   Temperature Controller:

    XMT-7100 Series (48*24mm) :

    AC/DC85-260V  DC12V  DC24V

    REX-C Series:

    REX-C100  REX-C400  REX-C700  REX-C900

    ST -500 Series:

    ST504  ST506  ST507  ST508  ST509

    XMT-7000 Series(PID):

    A(96*96)  D(72*72)  E(48*96)  F(96*48) G(48*48)

    XMT-9000 Series(PID):

    A(96*96)  D(72*72)  E(48*96)  F(96*48) G(48*48)

    XMT-7000P Series(PID, 32 time-interval ):

    XMTD-7000P  XMTG-7000P

    ST828 with RS485 Series:

    Analog Series:

    Thermocouple & Thermal Resistance:

    K-Type  J-Type  PT100

    Solid State Relay(SSR):

    25DA  25AA  25DD  40DA  40AA  40DD
