Home > Products > Coating Lines > Aluminum Coil Coating Line
Aluminum Coil Coating Line
- Ningbo/Shanghai port
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Coating Production Line | |
| Substrate | Aluminum | Coating | Coil Coating | |
| Place of Origin | Zhejiang, China | Brand Name | GEARTECH | |
| Model Number | JETDC-1800CL | Voltage | 380 | |
| Power(W) | 180W | Dimension(L*W*H) | 100X7X10 | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. exported to many countries
2.Russia, Romania, Turkey, U.A.E.,Saudi Arabia, Iran, India,Uzbekistan,Kyrgyzstan and Vietnam
Geartech industrial is a leading equipment manufacturer, specialized in making aluminum composite panel production line,steel and aluminum color coating line elc.
This line is used for rolled aluminum coil color coating, decorative pattern printing and surface embossing etc. Its process flow mainly includes surface chemical treatment, powder coating, heating and solidification. These equipments can be differently combined according to customers’ requirement.
Main Parameters | |
Raw material | Aluminum coil 1100 3003 5005 H14 H18 H24 |
Max weight | 5000KG |
Aluminum coil width | 800-1600mm |
Aluminum thickness | 0.020-0.5mm |
Aluminum coil diameter | 500-1600mm |
Coating material | PVDF PE AC |
Producing speed | 10-60m/min |
Occupied field of equipment (L*W*H) | 100*7*10 |
Water cost | 15TONS/DAY |
Power supply damand | Three-phase four-wire or three –phase five-wire |
Technical process: | |

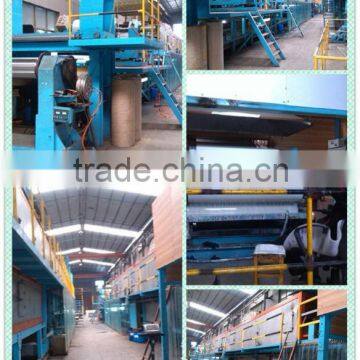

roll-opening machine -connecting machine- towing machine NO.1- front storage tower- degrease trough - rinsing trough- chrome plating trough- rinsing trough- hydrosphere oven- towing machine NO. 2- transducer- coating machine- paint solidifying case- deviation-rectifying NO.1- air cooling machine- towing machine NO.3- back storage tower - towing machine NO.4- deviation-rectifying NO.2- roll-receiving machine | |
