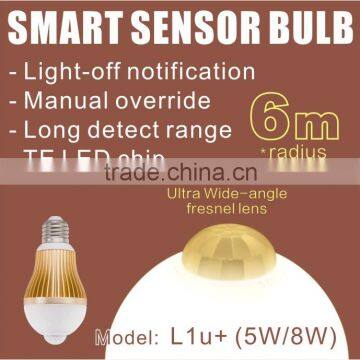

L1u+ ( 5W / 8W ) Ultra Large Detection Range PIR Motion Sensor LED Light Bulb with Light-off notification & Manual override

ZHi-lamp PIR Smart Motion Sensor LED Bulb
3000K/6000K  PIR motion sensor LED bulbs with E27 base for indoor corridors, stair, restrooms,basement...
light is on when human motion is detected and the ambient light is under 10 lux(night time), light is off after
time delay from 6s to 600s when no more movement is detected.

Ultra large detection range PIR motion sensor bulb product Features ( Model: L1u+)

- Ultra detection range, detection radius 6m at mounted height less 3m.
- Built-in sensor design, without extra switch or controller.
- The light actomatically turns on when motion is detected.
- Photocell keeps the light off during daylight hours.
- High sensitive PIR motion sensor covers radius of 3m detection range even in summer.
- Brightness will be lowered to 30% ten seconds before the light goes off.
- Switchable for normal manual operation mode to keep on lighting independent of auto motion sensor
function (Manual override).
- Standby power consumption down to 0.2W .
- Simple installation, direct replacement for 60W incandescent bulb.
- Ideal for using in kitchen, basement, corridors, restrooms, etc.

Ultra detection range PIR motion sensor bulb quick detail

Light Source: TE LED Chip
Lamp Luminous Flux(lm): (5W)>300 / (8W)>600
Color Temperature(CCT): 3000K/6000K
Lamp Body Material: Aluminum(1070)+PBT(V0)+PC(V2)
Place of Origin: China (Mainland)
Sensor mode: PIR motion sensor
Detection distance: 6m at 3m mounted height
Input Voltage(V): AC85 ~ 245
Input Power(W): 5W / 8W
Power Factor: 0.5
Working Temperature(℃): -20 ~ 40
Certification: FCC, RoHS
Brand Name: ZHi-Lamp
Driver: isolated driver
Delay time(s): 60~600 (Customizable)
CRI (Ra>): 80
Working Lifetime(Hour): 50000
Base Type: E27
Dimension(mm): 120*60
Warranty: 3 years

Detection Range

Notice:

*Ultra detection range PIR motion sensor light bulb should be fixed at mounted height less than 3m to keep detection in good performance.

*The bulb works good in following light fixture :

E27 base                             open lamp holder             downward wall lamp           down light

with extention cord

*Please do not use the sensor bulb as following

upward wall light          bathroom heater               dimmer  turner                  seal  glass cover

Packing: 1 pc / white box, 50pcs/ carton

Measurement: 36x36x27 cm

G/W: 8KG

Shipping: Main port in Shenzhen / Guangzhou

 OEM, ODM, PIR technology cooperation

Please visit for more information and see what we could do for you...

 Sdico Technology Co.,Ltd  is a company usually called as a fabless manufacturer.we have our own R&D team, specialized in research, development of burglar alarm system & human motion sensor light, .Passive Infrared (PIR) technology is regarded as our core competence . So far we have obtained 2 invention patent, 9 utility model patent, and 3 design patent. We are experienced in product  planning, technology development, mass production design, as well as quality control . We have been working with an international company as an ODM partner. . Being a technology-driven company, we not only care for user experience of our product, but also involve ourselves in working for the ultimate technology in the PIR sensing industry. Moreover, we regard the product quality as the representative of our reputation. Our goal is to develop  valued products and upgrade the quality of our  daily life.
Now we are moving to LED sensor light industry. By utilising our technology and know-how in sensor lighting and burglar alarm security, we aim to develop innovative products for smart-home and building automation . . Visit for more information and see what we could do for you.
Backgrounds:
1. Year of establishment :2011
2. Company certifications: ISO
3. Major export markets: Asia, Europe, North America
4. The main products: intelligent sensor light, security system
Production
1. the factory area :16000 m2
2. Number of employee :500
3. Num. of Product line :20; mainly advanced equipments: SMT,DIP
4. Capacity of production :300k/M; Time of delivery :30day
Development Ability
1. Number of RD persons: 7, average of RD’s working experience: 13 Year
2. Monthly number of new products development :1; new product development cycle :60 day
3. Sample cycle :15 day
4. Obtained patent certifications: 14
Quality Control:
1. Number of the quality auditors :3, average of QA’s working experience :10 Year
2. Achieved international certification of products CE, RoHS

Q1. May I have samples of the sensor bulb?

--Yes, but we charge for the sample cost and the delivery.Please contact us for further inquiry.

Q2. Is extra wiring needed when I install the bulb?

--No, all you have to do is to take down your exsiting bulb, and then screw up our sensor bulb. It could completely controlled by your exsiting switch on wall.

Q3. May I use the bulb outdoor?

--No. Actually it is an indoor sensor bulb. You will find it very convenient when using it at a basement, restroom, kitchen, stairs, corridor,etc.
