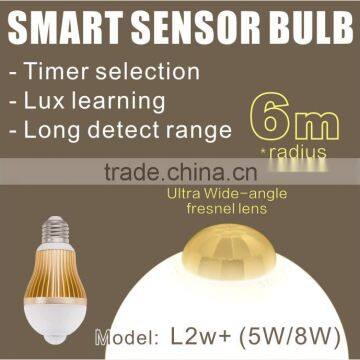

Ultra Large Detection Range Infrared Sensor Light Bulb with Lux Learning & Timer Selection Function(Model:L2w+)

ZHi-lamp Passive Infrared Sensor Light Bulb
3000K/6000K  PIR motion sensor LED bulbs with E27 base for indoor corridors, stair, restrooms,basement...
Light is on when human motion is detected and the ambient light is under the luminosity condition you require, light is off after certain time span you need when no more movement is detected.

Passive infrared sensor light bulb product features (Model: L2w+)

- Ultra large detection range, radius 6m at 3m mounted height

- Built-in sensor design, without extra switch or controller.
- The light actomatically turns on when motion is detected.
- Photocell keeps the light off during daylight hours.
- Lux setting: Keep the light working under the luminosity condition you require.
- Timer selecting: Light-on time can be selectable according to your requirement.
- Light-off notification: The brightness turns down before the light goes off, no more inconvenience of
sudden darkness.
- Soft turn-on: The light turns on with soft lighting and turns brighter slowly ,ease your adaption from
dark to brightness.
- Temperature compensation: PIR sensor sensitivity is adjustable according to surrounding
temperature, keeping the sensor sensitive even in summer.
- Slight motion detection: Better sensitivity for slight motion. You will find it more convenient when
using it at a restroom.
- Simple installation, direct replacement for incandescent bulb.
- Ideal for using in kitchen, basement, corridors, restrooms, etc.

Passive infrared sensor light bulb quick detail

Light Source: LED
Lamp Luminous Flux(lm): >300(5W) / >600(8W)
Color Temperature(CCT): 3000K~6000K
Lamp Body Material: Aluminum(1070)+PBT(V0)+PC(V2)
Place of Origin: China (Mainland)
Sensor mode: PIR motion sensor
Detection distance: 6m at 3m mounted height
Input Voltage(V): AC85~245
Input Power(W): 5W/8W
Power Factor: 0.5
Working Temperature(℃): -20 ~ 40
Certification: CE, RoHS
Brand Name: ZHi-Lamp
Driver: isolated driver
Delay time(s): 60 or 180 (Selectable)
CRI (Ra>): 80
Working Lifetime(Hour): 30000
Base Type: E27
Dimension(mm): 120*60
Warranty 2 years

Passive Infrared Sensor Light Sensing Range

Notice:

*Ultra large range passive infrared sensor light bulb should be fixed at the mounted height less than 3m to keep detection in good performance.

*Passive infrared sensor light bulb works good in following light fixture :

E27 base                             open lamp holder             downward wall lamp           down light

with extention cord

*Please DO NOT use the passive infrared sensor bulb as following

upward wall light          bathroom heater              with dimmer  turner                  seal  glass cover

Packing:           1 pc / white box, 50pcs/ carton

Measurement:  36x36x27 cm

G/W:                 8KG

Shipping:          Main port in Shenzhen / Guangzhou

OEM, ODM, PIR technology cooperation

Please visit  for more information and see what Sdico could do for you....



SDICO Technology Co.,Ltd is a company usually called as a fabless manufacturer.we have our own R&D team, specialized in research, development of burglar alarm system & human motion sensor light, .Passive Infrared (PIR) technology is regarded as our core competence . So far we have obtained 2 invention patent, 9 utility model patent, and 3 design patent. We are experienced in product  planning, technology development, mass production design, as well as quality control . We have been working with an international company as an ODM partner. . Being a technology-driven company, we not only care for user experience of our product, but also involve ourselves in working for the ultimate technology in the PIR sensing industry. Moreover, we regard the product quality as the representative of our reputation. Our goal is to develop  valued products and upgrade the quality of our  daily life.
Now we are moving to LED sensor light industry. By utilising our technology and know-how in sensor lighting and burglar alarm security, we aim to develop innovative products for smart-home and building automation . Visit to find out more about what Sdico could do for you...

Backgrounds:
1. Year of establishment :2011
2. Company certifications: ISO
3. Major export markets: Asia, Europe, North America
4. The main products: intelligent sensor light, security system

Outsource Production
1. the factory area :16000 m2
2. Number of employee :500
3. Num. of Product line :20; mainly advanced equipments: SMT,DIP
4. Capacity of production :300k/M; Time of delivery :30day

Development Ability
1. Number of RD persons: 7, average of RD’s working experience: 13 Year
2. Monthly number of new products development :1; new product development cycle :60 day
3. Sample cycle :15 day
4. Obtained patent certifications: 14

Quality Control:
1. Number of the quality auditors :3; average of QA’s working experience :10 Year
2. Achieved international certification of products CE, RoHS

Q1. May I have samples of the motion sensor bulb?

--Yes, but we charge for the sample cost and the delivery.

Q2. Is extra wiring needed when I install the motion sensor bulb?

--No, all you have to do is to take down your exsiting bulb, and then screw up our sensor bulb. It could completely controlled by your exsiting switch on wall.

Q3. May I use the motion sensor bulb outdoor?

--No. Actually it is an indoor sensor bulb. You will find it very convenient when using it at a basement, restroom, kitchen, stairs, corridor,etc.
