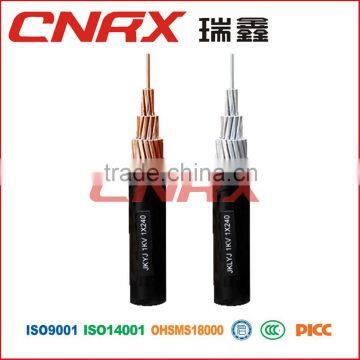

made in china yueqing ruixin group copper core pvc / pe / xlpe insulated Aerial cables

xlpe insulated armoured underground power cable

1.Specifications of power cable

XLPE/pvc Insulated, PVC/PE Sheath
IEC 60502, IEC 60228, IEC 60332

Armour, LSZH, Fire-resistant optional

2 Constructions of power cable

3 Applications of power cable

Used for power transmission and distribution line with voltage rated at 35kV and below.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of

excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosionresistant, but also simple structure, light weight,

no restriction by laying drop, and high

temperature allowance for long-term working.

4 Standards of power cable

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

5 Technical data of power cable

Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp.  0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

                    15 x cable O.D for single-core armoured cables

                    15 x cable O.D for multi-core non-armoured cables

                    12 x cable O.D for multi-core armoured cables

1 Our loyal purport: Based on sincerity! Serve the first!, your trustworthy parter

2 Devoted in the power transmission and distribution since 1995, having lots of experienced

   engineer and workers

3 We are able to contract foreign project obtained the qualification certificate

1. Which payment terms do you accept?

a.The payment term varies with different price level and total rate of each contract.

    The following are most common terms:

b. 30% T/T down payment, the balance before you picking up the  goods.

c. 100% L/C at sight.

d. 30% T/T down payment, the balance against 100% L/C at sight.

2.  What is your MOQ?

    You are advised to please confirm it with us directly as it’s based on different cable type.

    Usually it’s 500 meters for Medium Voltage Cables.

3. What about the lead time for our cable product ?

    The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.

4. What about our product's package ?

    our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.

For more information on detailed cable characteristics please call 86 577 57185601

Or email us your request for design cable and wire.
