Home > Products > Wire and Cable > Supplier china yueqing aluminum core armro XLPE Insulated PVC jacket steel cropper pvc cable Under armour electrics
Supplier china yueqing aluminum core armro XLPE Insulated PVC jacket steel cropper pvc cable Under armour electrics
- NINGBO SHANGHAI .etc
- T/T L/C
You May Like
-
Made in China yueqing aluminum core armro XLPE Insulated PVC jacket steel cropper pvc cable trunking south africa electrics
-
made in china ruixing group pvc insulated aluminum wire pvc insulated aluminum core electrical ft4 color power cable
-
made in china ruixing group pvc insulated aluminum wire pvc insulated aluminum core electrical flat flexible cables
-
made in china ruixing group bare copper wire 99.99% pvc insulated 2.5mm pvc insulated aluminum core electrical cable wire
-
Made in China ruixin thw wire Under Armour cable XLPE Insulated PVC jacket underground all kinds of power cable
-
Made in China ruixin 70mm2 95mm2 Under armour cable XLPE Insulated PVC jacket underground all kinds of power cable
Product Details
Place of Origin | Zhejiang, China | Brand Name | CNRX | |
Model Number | WDZA | Insulation Material | PVC | |
Type | Medium Voltage | Application | Construction | |
Conductor Material | Aluminum | Jacket | Other, XLPE, PVC |
Product Description
Specifications
1.electric power cable
2.Professional supplier
3.Reliable quality,best price
4.Strong capacity,fast delivery

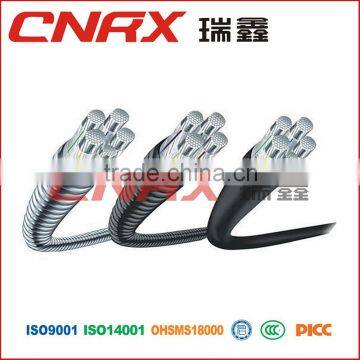

Made in China yueqing aluminium alloy conductor armro XLPE Insulated PVC jacket Aluminum power cable
Construction:
1) AL or Cu conductor, PVC insulated, PVC or PE sheathed cable;
2) Al or Cu conductor, PVC insulated, steel wire or steel tape amour, PVC or PE sheathed cable;
Special cable:
We can also produce this kind of cables with flame-retardant, Fire-resistant, anti-termite, low smoke and non-halogen cables, respectively according to the requirements of customers.
Operate characteristic:
(1) Alternating rated voltage as U0/U 0.6, 1KV or below transmission and transformation lines
(2) Maximum rated temperature of cable conductor is 70° C.
(3) Maximum conductor temperature is lower than 160° C when cable is shorted for less than 5 seconds.
(4) Ambient temperature is not lower than 0° C and its minimum bending radius is as follows when cable is installed
Standards:
The cable is manufactured in accordance with the standards of GB/T12706-2002. It can also be produced according to special requirements by customer.
Type | Name | Application |
VV | Copper conductor ,PVC insulated, PVC sheathed electrical cable | For laying in doors,in tunnel or cable trench, unable to bear external mechanical forces,S ingle core cable in magnteicduct is not permissible |
VLY | Aluminum conductor ,PVC insulated, PVC sheathed electrical cable | |
VY | Copper conductor,PVC insulated , PE sheath electrical cable | |
VLY | Aluminum conductor ,PVC insulated, PE sheathed electrical cable | |
VV22 | Copper conductor ,PVC insulated, steel tape armoured,PVC sheathed electrical cable | For laying in doors,in tunnels,in cable trench or direct buried,able to bear external mechanical forces, but unable to bear large pulling force. |
VLV22 | Aluminum conductor ,PVC insulated, steel tape armoured,PVC sheathed electrical cable | |
VV23 | Copper conductor ,PVC insulated, steel tape armoured,PE sheathed electrical cable | |
VLV23 | Aluminum conductor ,PVC insulated, steel tape armoured,PE sheathed electrical cable | |
VV32 | Copper conductor ,PVC insulated, fine steel wire armoured,PVC sheathed electrical cable | For laying indoors,in tunnels,cable trench, well or direct buried,able to bear external mechanical forces and determinate pulling force. |
VLV32 | Aluminum conductor ,PVC insulated, fine steel wire armoured,PVC sheathed electrical cable | |
VV33 | Copper conductor ,PVC insulated, fine steel wire armoured,PE sheathed electrical cable | |
VLV33 | Aluminum conductor ,PVC insulated, fine steel wire armoured,PE sheathed electrical cable |
| |
| |
1 Our loyal purport: Based on sincerity! Serve the first!, your trustworthy parter
2 Devoted in the power transmission and distribution since 1995, having lots of experienced
engineer and workers
3 We are able to contract foreign project obtained the qualification certificate
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?
our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
For more information on detailed cable characteristics please call 86 577 57185601
Or email us your request for design cable and wire.
