Home > Products > Solar Panel > A grade cell high efficiency 250W solar panel with TUV IEC CE in China

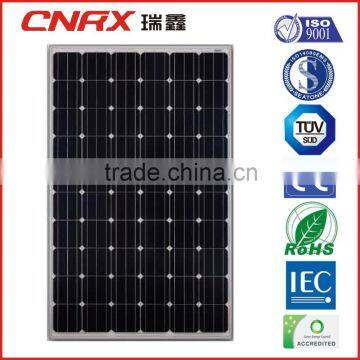

A grade cell high efficiency 250W solar panel with TUV IEC CE in China

FOB Price

USD $0.49 - $0.62 / Watt

1 Watt(Min.Order)

Port Ningbo Shanghai
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	CNRX OEM ODM
Model Number	RXM250-60	Material	Monocrystalline Silicon
Size	165099040mm	Number of Cells	Solar cell 60PCS (6*10)(156mm)
Max. Power	250W solar panel, 250w solar panel

Product Description

20 Years Professional Manufacture in china with TUV CE Rohs certificate/ 5W-300W solar panel for solar panel

Warranties

. 10 years limited product warranty.

. 15 years at 90% of the minimal rated power output.

. 25 years at 80% of the minimal rated power output.

Advantages of solar panel

Specifications of solar panel

	Mode	250W solar panel
	Cell (mm)	156*156mm
	No of cells and connection	60PCS (6*10)
	Dimension of solar panel(mm)	165099040mm
	Weight(kg)	22.5kgs
	Cable(mm²)	4 mm²
	Juction Box	IP67
	Connector	MC4 compatible
	Packaging	25PCS/per pallet, 28pallets/40ft

Electrical Parameters

Type	RXM235-60	RXM240-60	RXM245-60	RXM250-60	RXM255-60
Max-Power Pm(W)	235	240	245	250	255
Module-Power Range(W)	240>Pm≥235	245>Pm≥240	250>Pm≥245	255>Pm≥250	Pm≥255
Power Tolerance(W)	+0~+5	+0~+5	+0~+5	+0~+5	+0~+5
Max-Power Voltage(V)	30.8	31.1	31.4	31.85	32.3
Max-Power Current lm(A)	7.64	7.73	7.81	7.85	7.9
Short-Ciruit Current lsc(A)	8.55	8.65	8.75	8.85	8.9
Open-Circuit Voltage Voc(V)	36.6	37	37.3	37.65	38.2
Max-System Voltage(VDC)	600V(UL)/1000V(IEC)
Cell Efficiency(%)	16.4	16.7	17.1	17.4	17.8
Module Efficiency(%)	14.3	14.6	14.9	15.2	15.5
Max.Series Fuse(A)	15
Pm Temperature Coefficients(W/℃)	-1.1041
Lsc Temperature Coefficients(A/℃)	0.00418
Voc Lsc Temperature Coefficients(V/℃)	-0.1261
NPCT Nominal Operating Cell Temperature	47±2℃

Production & testing Processes

Applications

Packaging & Shipping

. Products are packed by corrugated carton or wooden box with wooden pallet.

Our Services

Our Service

. Are you factory?

Yes, we are a leading manufacture for solar panel, cable, transformer in China.

. Do you supply samples?

Samples are available for testing and market test.

. Warranty of solar panel?

By our warranty terms.

. Guides and after- service Consultancy

After-service consultancy just for you and to make your problems to solve easily. Hours 24

. OEM & ODM Service

We have effective teams for R&D, engineering, production, QA, Sales, and advance equipments, assuring a high quality product and prompt delivery for customers.

. Payment terms?

T/T, L/C, credit, West union for order now.

Certifications
