Home > Products > Solar Panel > China Manufacturer Ruixin Group direct price of 36cells poly Solar panel max power 150Watt price per watt with TUV CE IEC ROHS

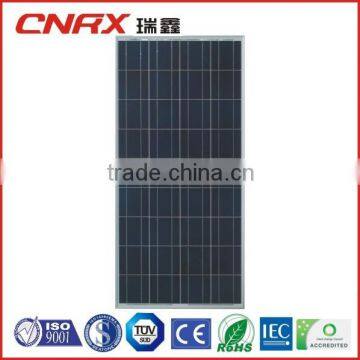

China Manufacturer Ruixin Group direct price of 36cells poly Solar panel max power 150Watt price per watt with TUV CE IEC ROHS
- NINGBO SHANGHAI.etc
- T/T D/P D/A Credit Card
You May Like
-
China Manufacturer Ruixin Group FOR Home solar systems 54cells MONO Solar panel max power 230Watt price per watt with TUV CE IEC
-
China manufacturer Best price for 305 watt POLY solar module 72cells 156*156 solar panel with TUV CE IEC ROHS
-
China Supplier YueQing Ruixin Group solar module Best price for MONO 72 cell 156*156 solar panel module with TUV CE IEC ROHS
-
Mono 250w solar panel in China with TUV CE certificate
-
Mono 50watt solar panel manufacturers in china factory direct price High Quality with TUV ROHS CE in dubai
-
Mono 50watt china solar panel supplier 18v solar module factory direct price High Quality with TUV ROHS CE
Product Details
Place of Origin | Zhejiang, China | Brand Name | CNRX | |
Model Number | CNRX-150w-36P | Material | Polycrystalline Silicon | |
Size | 1480*680*35 | Number of Cells | 36 PCS | |
Max. Power | 150 W |
Product Description
China Manufacturer Ruixin Group direct price of 36cells poly Solar panel max power 150Watt price per watt with TUV CE IEC ROHS
20 Years Professional Manufacture / TUV CE Rohs certificate / 600MW per year/ quality warranty
. 10 years limited product warranty.
. 15 years at 90% of the minimal rated power output.
. 25 years at 80% of the minimal rated power output.
Model | Wp (W) | Voc (V) | Isc(A) | Vmp (V) | Imp (A) | L*W*H(MM) | Weight (Kg) | Description |
RXM150-36 | 150 | 21.96 | 9.11 | 17.98 | 8.35 | 1480*680*35 | 12 | 4*9 |
Electrical Characteristics | ||||||||
Size and Number of cells | 156mm*156mm 36pcs(4*9) | |||||||
Maximum Power(Pmax) | W | 150 | ||||||
Tolerance | ±3% | |||||||
Open Circuit Voltage(Voc) | V | 21.96 | ||||||
Short Circuit Current(Isc) | A | 9.11 | ||||||
Maximum Power Voltage(Vmp) | V | 17.98 | ||||||
Maximum Power Current(Imp) | A | 8.35 | ||||||
Max.syst.Oper.voltage | V | 1000V | ||||||
Dimension | mm | 1480*680*35 | ||||||
Weight | kg | 12 | ||||||
Operate Temp.scope | ℃ | -40/+85 | ||||||
Glass,Type and Thickness | Ultra-white,Low Iron,Tempered Glass 3.2mm | |||||||
Junction Box | IP65,Pass TUV | |||||||
Cable Type,Diameter and Length | 1×2.5mm²,TUV certified,900mm | |||||||
Bypass-Diods | 2 | |||||||
Frame | Aluminum alloy of silvery white | |||||||
Encapsulant | EVA | |||||||
Back | TPT | |||||||
Mechanical Load | 5400Pa | |||||||
Resistances | 227gsteel ball fall down from 1m height and 60m/s wind | |||||||
Minimum order quantity | 10 pcs | |||||||
Delivery time | 10to15 days | |||||||
(Standard test condition:AM1.5,1000W/m2,25℃) | ||||||||
(We can guarantee 5 years with 100% performance guarantee,10 years 90% rated power output,25 years 80% rated power output.) |
. products are packed by paper carton or wooden box, we usually make the package by customers’ need.
. Packaging: standard export package suitable for long sea voyage and tough handling
. Delivery Detail: 10-25 days depending on order quality
. Founded in 1995, authorized as the national non-region enterprise group in 2001.
. 180000 square meters for producing.
. Certificate: ISO9001, ISO14001, OHSMS18001, TUV,CE,ROHS,CCC, etc.
. Above 1500 Employees.
. More experience for projects, OEM, ODM.
. Hi-tech professional and efficient R&D team.
. Newest technology and advance equipments.
.Quick service and warranty.
. Are you factory?
Yes, we are a leading manufacture for solar panel, cable, transformer in China.
. Do you supply samples?
Samples are available for testing and market test.
. Warranty of Solar Panel
By our warranty terms.
. Guides and after- service Consultancy
After-service consultancy just for you and to make your problems to solve easily. Hours 24
. OEM & ODM Service
We have effective teams for R&D, engineering, production, QA, Sales, and advance equipments, assuring a high quality product and prompt delivery for customers.
. Payment terms?
T/T, L/C, credit, West union for order now.
