HG350 Gantry h Beam Truck Chassis h Beam Welding Machine Welding Machine Automatic CNC Welding Machine

Specifications

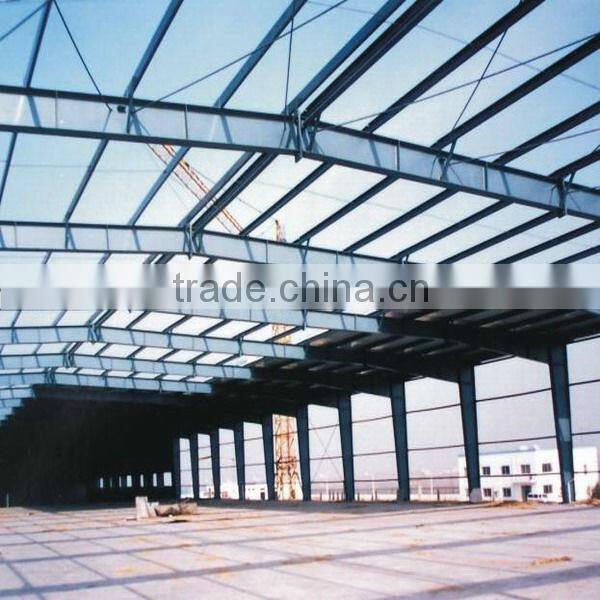

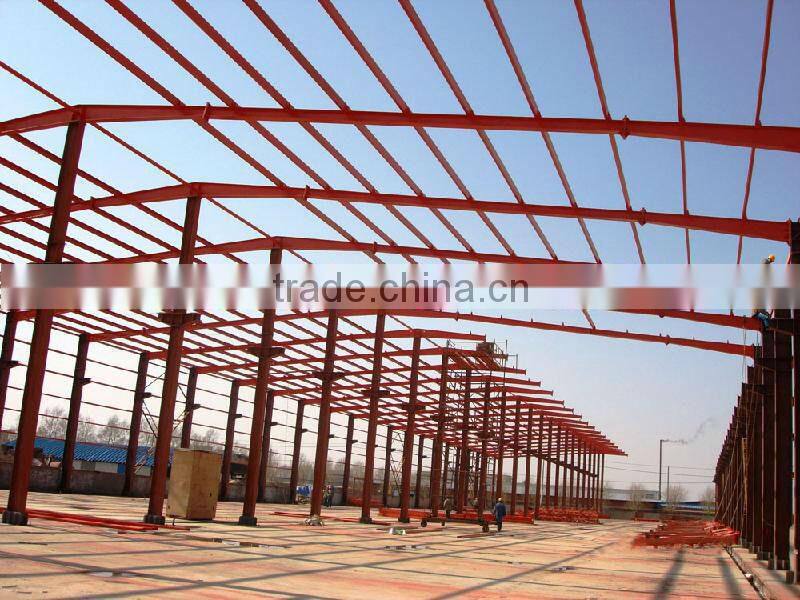

1. HG400 gantry h beam truck chassis crane beam  h beam welding machine welding machine automatic CNC welding machine used for steel building and truck production

    Many steel and trailer structure manufacturers want to make tapered h beam. Traditional welding is only single seam welding; tapered h beam in traditional welding is complex and low efficient. The machine is special for tapered h beam welding with higher efficiency.

Gantry type, stable running, nice looking and easy operation. Two units of submerged arc welding systems, and flux recyclers, weld the tapered h beam two sides simultaneously.

 2. Main character of HG300 gantry h beam truck chassis crane beam  h beam welding machine welding machine automatic CNC welding machine

-Strong box girders and linear guide ensure welding torch running accurancy

-AC motor at two sides supply 0-3000mm/min running speed

-Fine adjustment available for welding torch position

-Contact type tracing device, works with welding head, includes: one height sensor and transverse sensor

-six axis

-Control welding source, control the seam,and settle the parameters

-Quick return

-Automatic tracing

-Linear guide and screw for lifting of welding torch

3.Parameter of HG300 gantry h beam truck chassis crane beam  h beam welding machine welding machine automatic CNC welding machine

4.Factory capability:  to make sure good fitting and lasting life of the machine,we do:

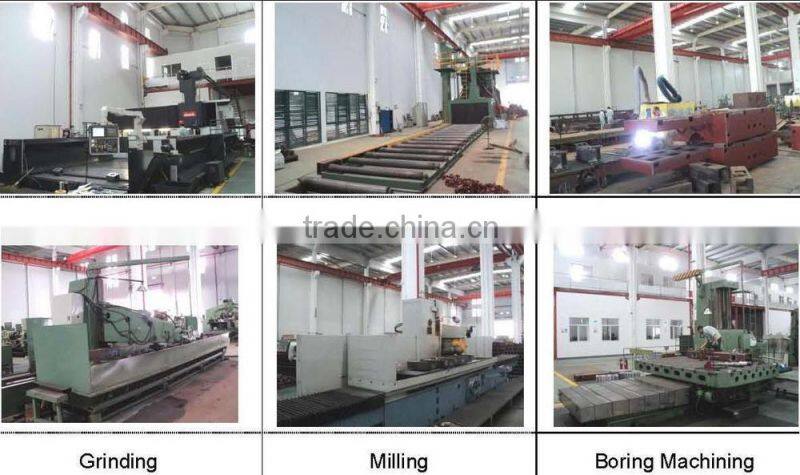

- All mechanical key parts are processed on our own advanced machinery

-All parts are inspected carfully before assembling

5. Professional package and timely shipment of HG300 gantry h beam truck chassis crane beam  h beam welding machine welding machine automatic CNC welding machine

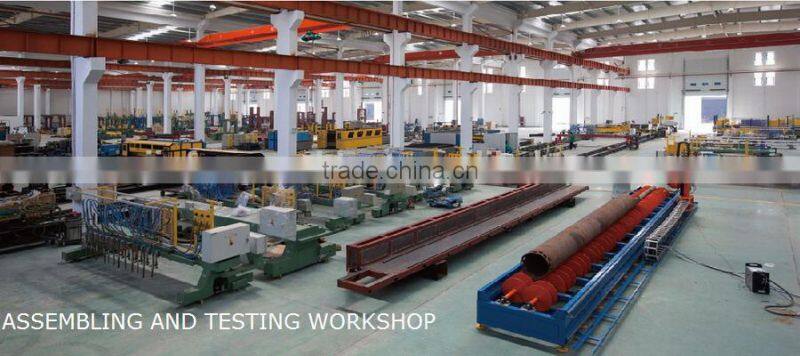

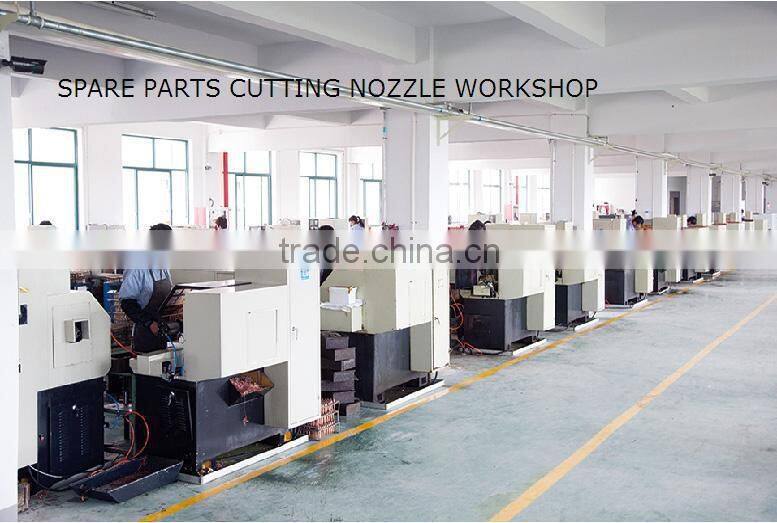

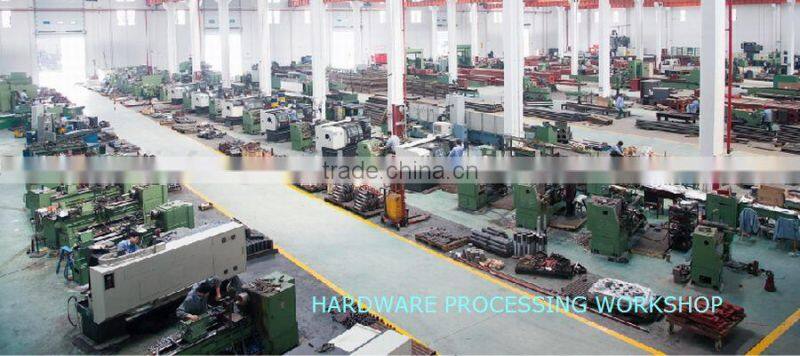

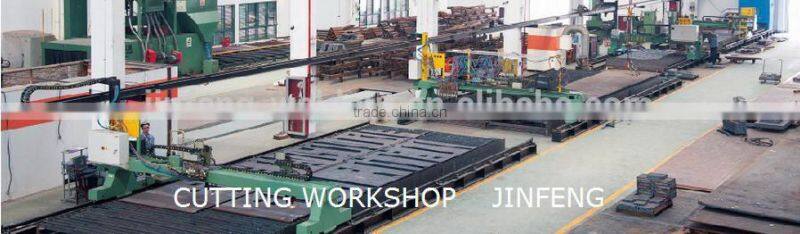

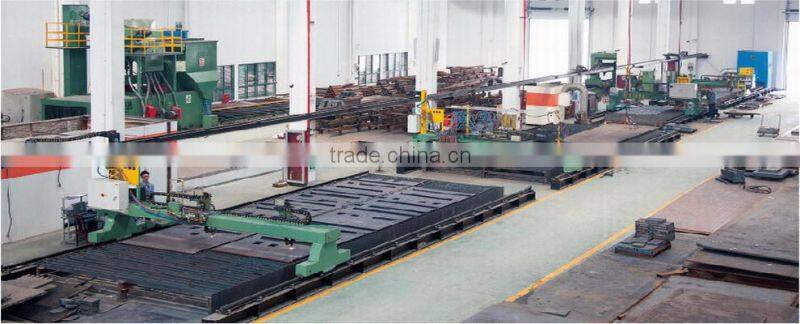

   6.Factory real picture
