Home > Products > Beam Structure Weding lines > H I BOX welding machine

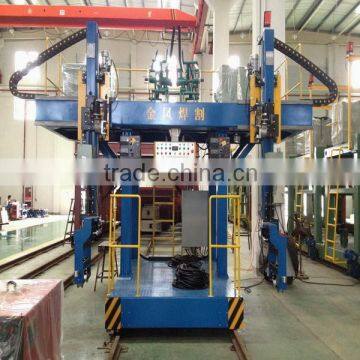

H I BOX welding machine
- 40 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HG300 HG400 H beam welding machine
-
Submerged arc welder welding equipment welding machine h beam welding machine heavy h beam I beam box beam automatic welding
-
Gantry heavy h beam I beam box beam automatic submerged arc welder welding equipment welding machine h beam welding machine
-
H beam I beam box beam automatic submerged arc welder welding equipment welding machine h beam welding machine
-
Submerged arc welder welding equipment welding machine h beam welding machine Light h beam I beam box beam automatic welding
-
Submerged arc welder welding equipment welding machine h beam welding machine Gantry Light h beam I beam box beam welding
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | JINFENG/Lincoln DC1000 | Model Number | TMH14 | |
| Arc Current | Submerged arc welder | Motor Type | AC Motor | |
| Dimensions | 3000x4600x3400mm | Usage | h beam,,t bam, i beam welding | |
| Voltage | 380V,415V,440V,480V | Power(W) | 157KW | |
| Certification | ISO9001,CE | Warranty | 12month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
H I BOX welding machine1.h beam
2.steel fabrication
3.steel building,steel structure
Technology of H I BOX welding machine
This machine is T type which is no limit of h beam web height, auto submerged arc welder, solder recycling system, guiding arc device etc. Using frequency variation can adjust the speed of welding moving. Using electric circuit control can get the result of stable arc; large range of current adjustment and the function of auto filling is pit. The machine is applied to the machinery manufacture, steel structure such industries. Product main featureThe control part is composed of MZK-3 or NA-3, NA-5 welder control box and external control box.
Parameter of H I BOX welding machine
Flange width | 200-1000 mm | Web height | >200 mm |
H beam length | 4000-20000 mm | Machine weight | 4.8T |
Rail Span | 1400 mm | Welding speed: 250-750 mm/min (according to welding technology) | |
Rapid speed | 3000 mm/min | Welding type | Fillet welding in the flat position |
Welding wire | Φ3-Φ5 mm | Flux recovery unit | 100 kg×1 |
Drive mode | Dual drive | Control mode | Inverter step less speed adjustment |
Power supply | 380 V/3 PH/50 HZ | Machine power | 9 kW exclude welder |
Process of H I BOX welding machine
Products of H I BOX welding machine
H beam process for a complete prodction line
Important mechanical parts are in processing
Professional package and timely shipment
Independent,professional and serious quality control team
Reliable production capability is made sure by advaned facilities and good management
Application of H I BOX welding machine
Products sample and exihibitons
