Home > Products > Fuse Switch > Top quality fuse links suppliers
Top quality fuse links suppliers
US$ 0.31 - 2.5
/ Piece
500 Pieces(Min. Order)
- Shanghai or Ningbo Port
- T/T D/P D/A
You May Like
-
HE-024 heavy duty connector,24pin connector for hot runner
-
HE-016-Male/female Heavy duty rectangular pin connector hood,connector for hot runner
-
HE-016 .16 Amps excellent quality heavy duty mould connectors for hot runner
-
HDD-024 .10 Amps heavy duty connector,hot runner connector
-
HD-008,Heavy duty connector,machine connector for hot runner
-
Heavy duty rectangular pin connector hood ,46pin for hot runner connector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMICO High voltage fuse link | |
| Model Number | T & K type High voltage fuse link | Type | Other, fuse link | |
| Material | PVC | Application | Other, High Voltage, used in dropout fuse cutout | |
| Rated Voltage | 11-38KV | Tensile Strength | High |
Product Description
Specifications

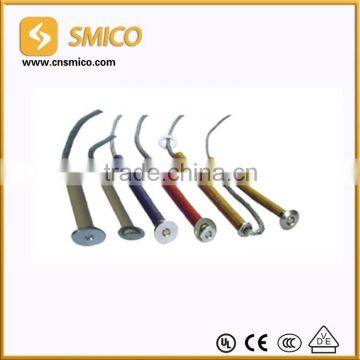

High voltage fuse link1.Rated Current: 1A-300A
2.Rated Voltage: 11KV-38KV
3.Length:23''L or 31''L
Introduction
Our fuse link is divided into "K"and "T "type, the product is made of “K”type fuse link is 6-8 melting speed, and “ T”type with 10-13 melting speed, these two types off are link are popularized
by national resource department and are widely applied to drop-off type fuse of 11-36 KV grade.
Features:
Rated current :1A-300A
Rated Voltage :11KV-27KV (Length :530MM-600MM)
Rated Voltage :33KV-38KV (Length :787MM)
Standard: IECV-282
High breaking capacity
High mechanical strength
Application: Drop-off type fuse of 11-36KV grade
Main technical parameters:
Rated Current, A | A(mm) | B(mm) | C(mm) | D(mm) | F(mm) |
1~25 | 12.5±0.2 | 19±0.2 | Note 1 | 2.0 | 8.0 |
30~40 | 12.5±0.2 | 19±0.2 | Note 1 | 3.0 | 8.0 |
50~75 | 19±0.2 | NA | Note 1 | 5.0 | 10.0 |
100~120 | 19±0.2 | NA | Note 1
| 7.0 | 10.0 |
140~200 | 19±0.2 | NA | Note 1 | 7.0 | 12.0 |
Mechancial dimensions:
