Home > Products > Fuse Switch > fuse switch disconnector 160Amps

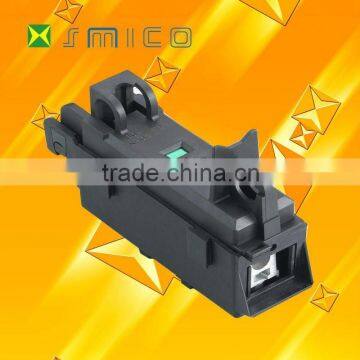

fuse switch disconnector 160Amps
USD $1 - $100
/ Unit
1 Unit(Min.Order)
- 100000 Unit / Units per Month
- CHINA PORT
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMICO | |
| Model Number | APDM | Max. Current | 160A | |
| Max. Voltage | 380V |
Product Description
Specifications
fuse switch disconnecter 160A, 400A, 630AType:APDM-1
fuse switch disconnector,fuse switch disconnecter, fuse switch, apdm, mounted fuse
switch disconnecter, switch nh type 160a, fuse holder
Technical Particulars
switch disconnecter, switch nh type 160a, fuse holder
Technical Particulars
Model No.:APDM-1/160A
Body/Carrier Material: Polyamide
Rated Operational Current: 160Amps
Rated Operating Voltage: 440Volts, 50Hz
Rated Insulating Voltage: 1000Votts
Rated Short time current: 10kA rms for 0.5s with 17 kA peak Cable size up to 95 sq.mm
Fuse link: NH type size 1 & 2
Dimensions: 210 x 140 x 70mm
Weight: 720grams(Not Binding, without fuse)
