Aluminum Composite Panel/PVDF Aluminum Composite Panel

aluminum composite panel for exterior wall/ PVDF aluminum composite panel

DESTRIPTION

Aluminum composite panel
15 years warranty
Universal application
Ral and Panton Colors available

Productions configuration

Physical Mechanics Performance Table

1) Super peeling strength
2) Perfect cold resistance performance
3) Excellent surface flatness and smoothness
4) Superior weather, corrosion, pollutant resistance
5) Even coating, various colors
6) Superior impact resistance
7) Lightweight and easy to process
8) Easy to maintain

Why choose our aluminum composite panel

1.Super excellent  physical characteristics

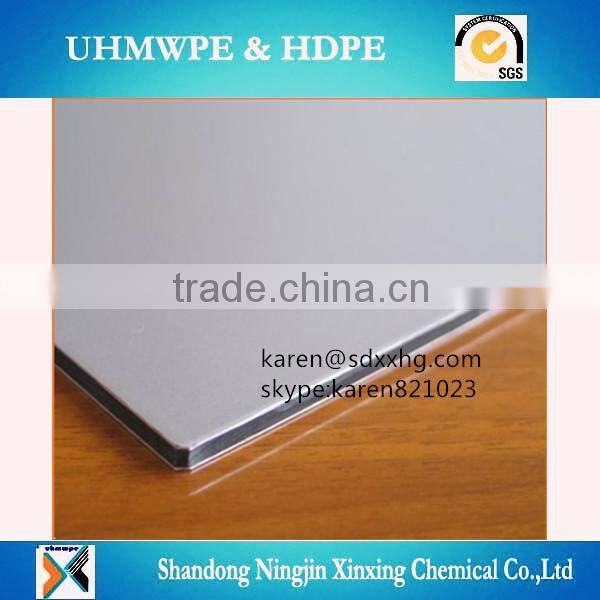

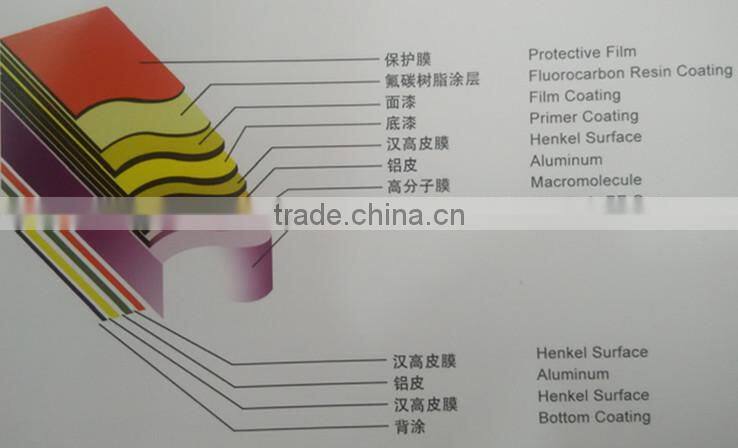

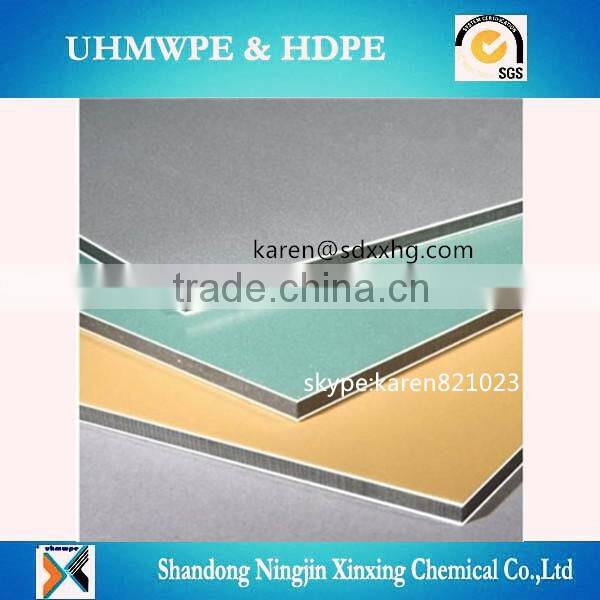

There is sveral different thickness of 3/4/5 mm etc fof our aluminum composite panel. Its structure as following : both front  and rear is  aluminum sheet with 0.08-0.5mm, the core is  LDPE board. Its maximum width can reach 1.55m and the length can be custom according to clients' request. Bending  strength and rupture strength of normal metal completely depend on its surface layer. Applying this characteristics and physical property of I − shape beam,  the strength of our aluminum composite panel is not changed with lighter self-weight. This is able to lower load of architectural structure and increase safety.

2.Adanced technology

Surface coating mode for our aluminum composite panel is taking international the most advanced P.V.D.F or called KYNAR-500 fluorocarbon resin paintings dressing or single-side anode processing, made completely according to E.C.C.A, N.C.C.A and A.A.M.A standard work flow. Because of adopting painting dressing of advanced roller printing technology of precise type and back turn style, it is different from spray paint normally adopted. So superficial coating thickness and uniformity of luster chromatism can be controlled effectively. Therefore, smoothness of board surface is extremly excellent.

3.Performance are  reliable

Because of adopting  superexcellent raw material and advanced manufacturing technique to produce, our aluminum composite panel ahve superior weather resistance, being  able to  stand trial of  various kinds of atrocious weather in temperature range from-50°c to 90 °c and keep its excellent quality.

PVDF Aluminum Composite Panel:

By adopting PVDF paints from the two toppest paint supplier: American PPG and Sweden Beckers, our PVDF Aluminum Composite Panel is the most ideal material for facade cladding, curtain wall cladding and other outdoor using purpose.

PVDF is short for Polyvinlylidene Fluoride, the color will have no obvious change within 15 to 20 years when it’s applied outdoor. PVDF paint should be 2-layer coating or 3-layer coating, and Painting Thickness ≥25um., Fluorocarbon Powder ≥70%.

Polyester(PE) Aluminum Composite Panel:

Due to Polyester paints’s great nature, it can achieve versatile vivid color and achive higher gloss rate than PVDF. our Polyester Aluminum Composite Panel is ideal for interior wall and shopfront decoration and signaboard materials.  And it can lower your budget the most.

With Polyester, the color has 5 to 10 years color warranty. Painting Thickness ≥18um, usually its a 1-layer coating or 2-layer coating.

Aplication

1. wall decoration and interior decoration for Airports, erminals, hotels, guesthouse, villas, entertainment, residential and office buildings.

2. Store decoration, wall skirting, ceiling, bathroom, kitchen, pack columns, compartment, furniture.

3. Advertising signs, display cabinets, traffic booth, street newstand, gas stations

4. Trains, cars, ships, coach carriage decoration.

5. Transformation for municipal engineering, purification for dust control engineering.

Specification

Width: Max 1550mm

Length: According to clients' request

Thickness:  whole panel thickness:3mm/4mm/5mm/ 6mm or according to clients'request

                    Thickness of aluminum panel:0.08-0.5mm

Standard size: 1220*2440*3mm

                        1220*2440*4mm

                        1220*2440*5mm

                        1220*2440*5mm

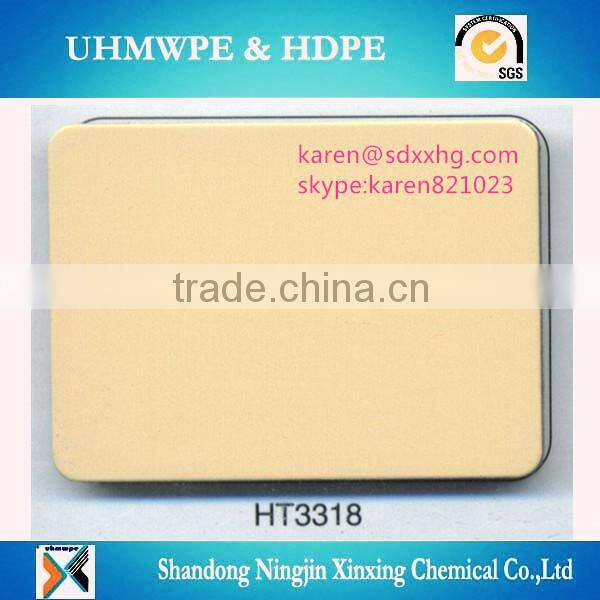

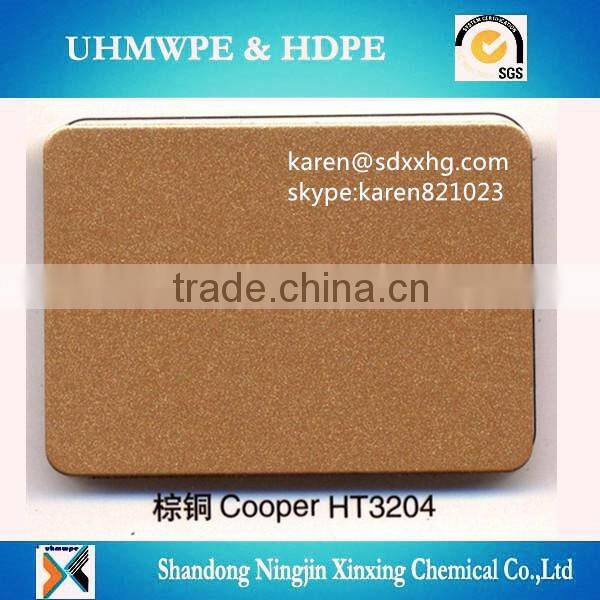

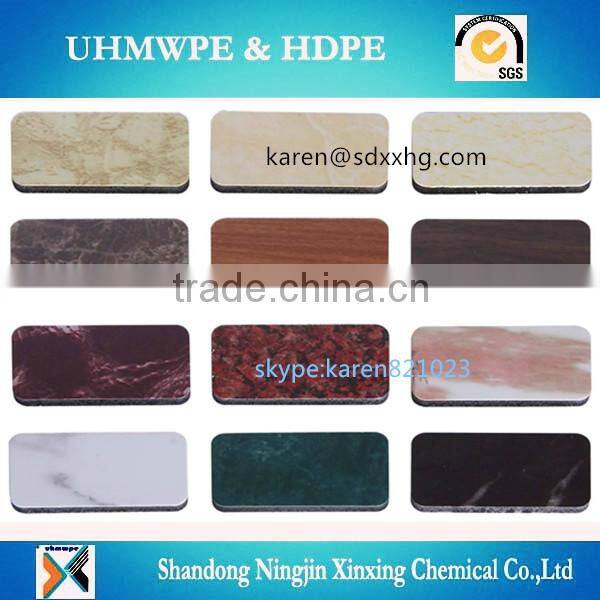

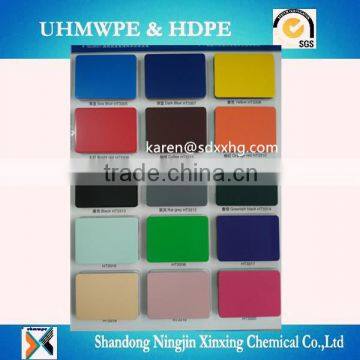

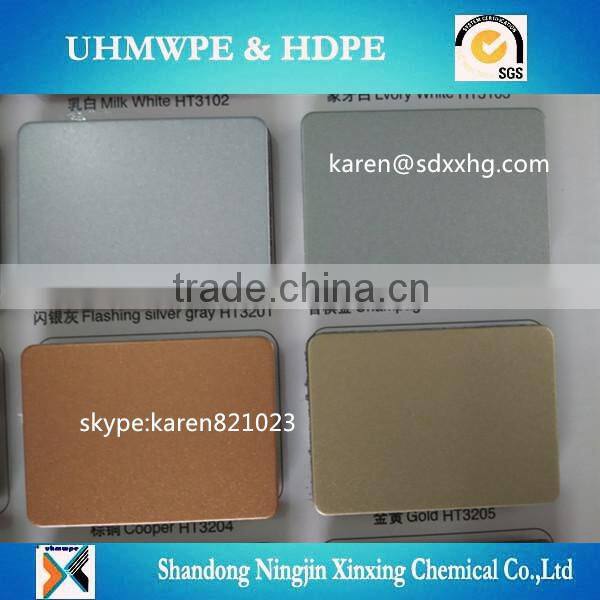

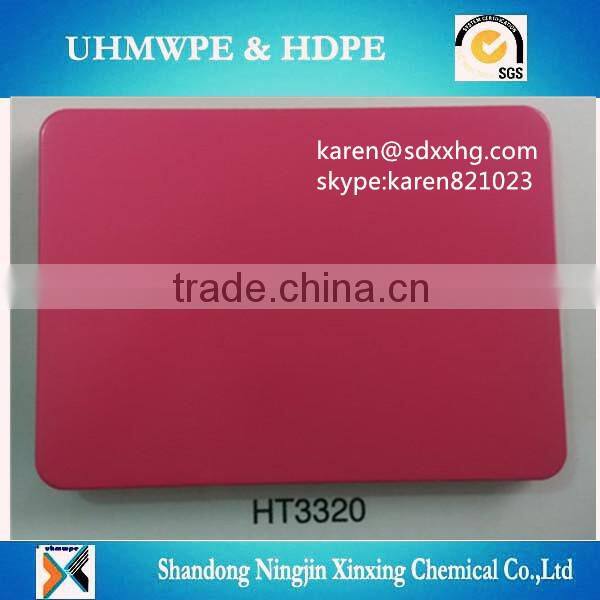

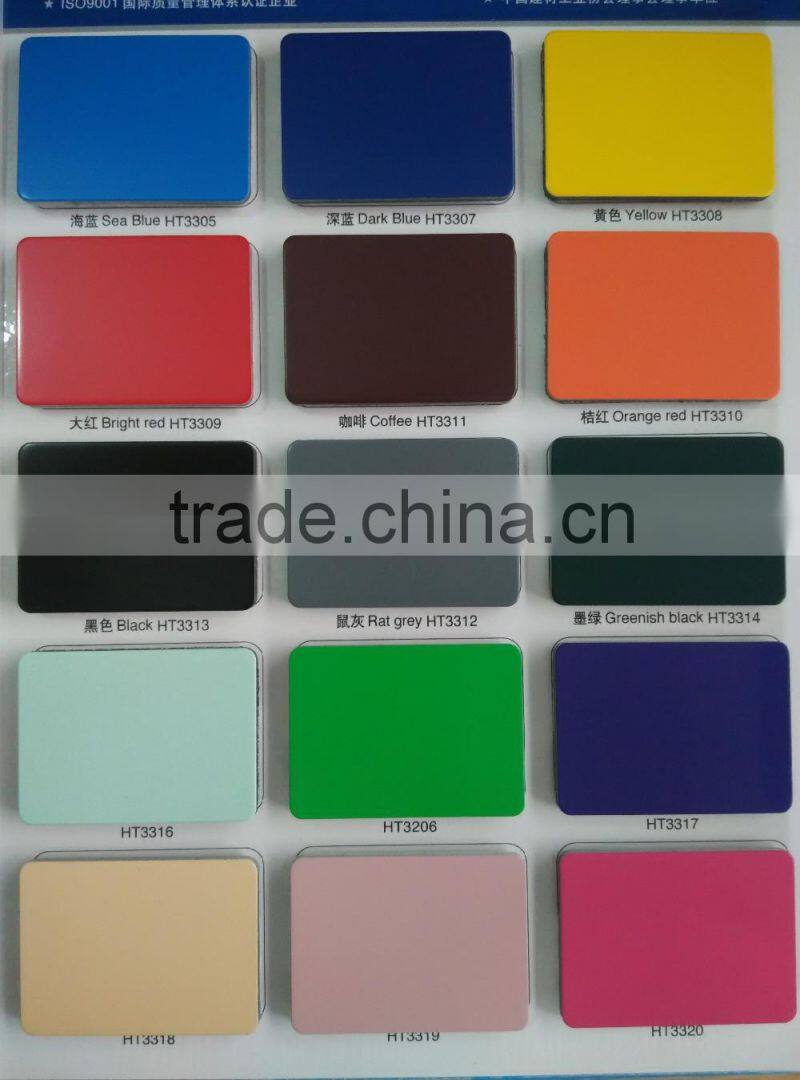

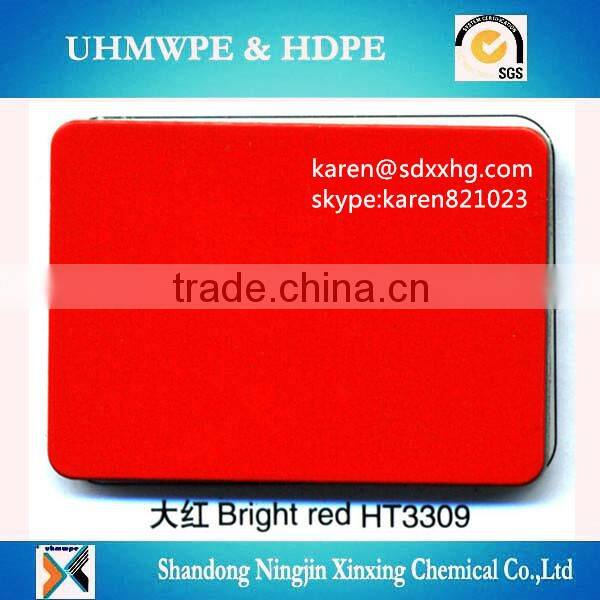

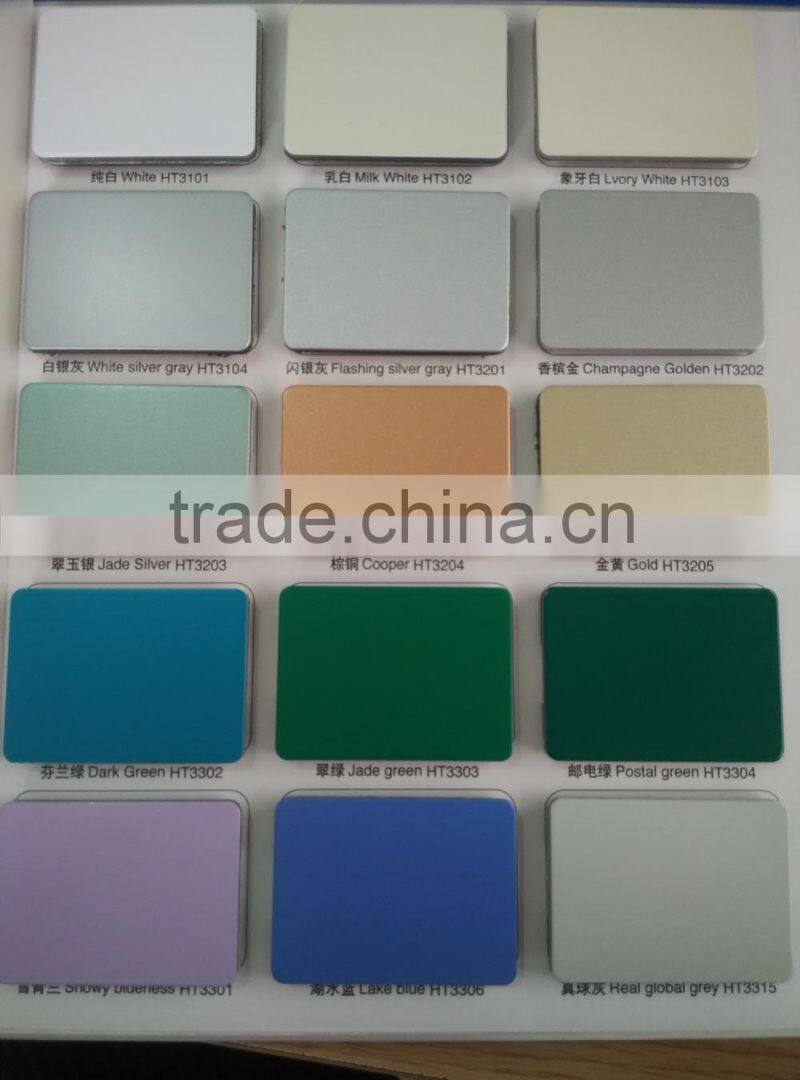

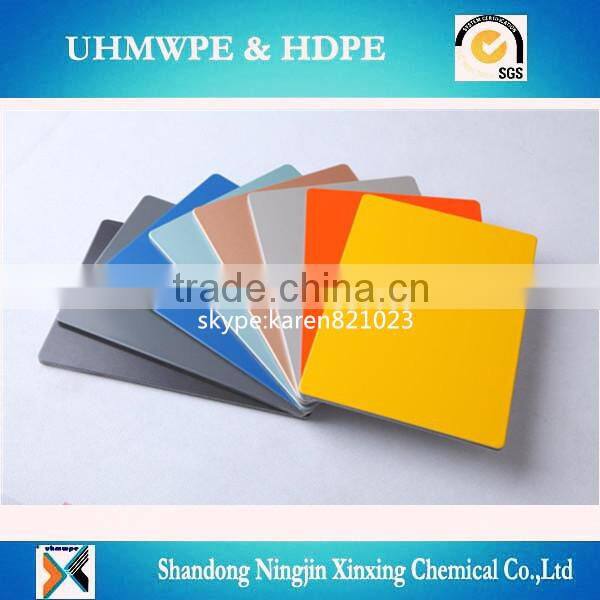

Color:  More than 30 standard colors and Any standard color is available for us. Strict ΔE control.

            ΔE means the color coherence control in same or different batch, eash the pressue on client's

            stocking plan or supplying line.

Company Information

We are one of the largest Engineering Plastic products manufacture in China.

All the stuff in our company are dedicated to producing satisfying products and developing new products for our customer.

We have gained many certificates from government and professional fields .We have a wide variety of products, mainly including all kinds of UHMW-PE Fender Pad ,UHMW-PE  Sheet , HDPE Sheet ,   PP Sheet ,  Urethane
Sheet ,PVC sheet and other Engineering plastic products.

Our products are widely applied on electric fields ,wharf and port ,mining ,chemical plant and so on which bring a lot of social benefits and economic benefits .Now they are popular all over the world.
We always share the things "Quality first, Customer first ,keeping improving " to win more benefits for our customer.
  In order to achieving rapid and sustainable development, we are willing to establish a wide and deep cooperation
