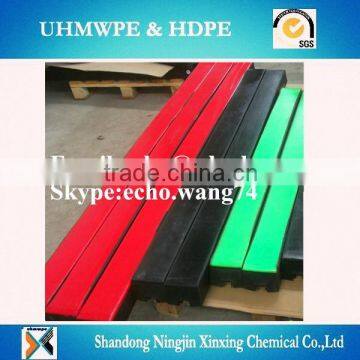

UHMWPE impact bars belt conveyors/conveyor impact bed bar with no moving parts

Specifications

Our impact cradle of belt conveyor feature:

Impact Bar and Impact Bed Conveyor Belt Support System:

The impact bar is a combination of three different layers. The top layer is made of UHMWPE for smooth movement of belt, thanks to its low dynamic co-efficient of friction.

The middle layer is of rubber to cushion the impact load while the lower layer is made of aluminum, which actsas a fastening device with the main support frame or cradle.

The cradlers are custom built to suit specific applications. The installation of impact bar is made is such a way that the belt is not in touch with the bar when running empty. The belt comes in contact with the bar only when it is running under loaded condition.

Impact bars and impact bed are made up of a cast aluminium T-slotted base covered in a solid block of 60 shore hard rubber with a 10mm polyethylene(PE) top.

Impact bar is used in the loading area of the belt conveyor to replace the traditional cushion rollers. Its designed to absorb impact loading which will dramatically reduce shock and stress loading to the structure.

Application Areas:

1. Textile Industry

2. Chemical Industry

3. Food Processing Industry

4. Paper Industry

5. Material Handling

6. Farm Implement

7. Mining & Metals Processing Industries

8. Transportation

9. Consumer Products

10. Waste Water Treatment

11. Food and beverage light industry

12.Sport and amusement industry

13. Medicine Field

Features:
1.Avoids the damage to the belt through the contact between the bar and surface of belt.
2.The conveyor belt is stressed evenly in the loading area, which will reduce  the daily maintenance cost.
3.Effectively eliminate the spillage or scattering of the material caused by unequality of the stress on the belt.
4.The UHMW polyethylene surface has outstanding sliding properties.
5.Arc surface of polyethylene enables the conveyor belt to running smoothly.
6.Ultra elastic rubber absorb the impact in the maximum.
7.Each part of the impact bar is closely jointed by hot vulcanization. Fastening device has different tightening points along the bar and make the joining strong and reliable, easy to install and remove.

Used in the conveyor loading points or transfer points to replace traditional cushion rollers. It’s designed to absorb impact loading and help eliminate spillage and scattering of the products. This results in less wear and tear on your conveyor system, dramatically improves the efficiency and reduces the maintenance cost.

About our company :

XINXING is the leading manufacture for Engineer plastic like UHMWPE ,HDPE ,PP ,PVC in China for nearly 20 years with the most competitive price and best quality .We can supply UHMWPE,HDPE ,PP ,PVC ,POM Sheet /rods/parts and now 70% of our production have exported to all over the world like America,Europe ,Russia ,Australia and South Asia .XINXING is the only manufacture in China that have ever cooporated with the mostforeign goverment companies.

Characters:

1. Non-Toxic and smell

2. Low coefficient of friction

3. Corrosion resistant

4. Abrasion and impact resistant

5. Anti-Weather and Anti-Aging

6. Self-lubricating

7. Wear Resistant

8. Great liner material for industrial material handling applications

9. UV Resistant/ultraviolet-resistance sheet

Advantages:
1. Avoids the damage to the belt through the contact between the bar and surface of belt.
2. The conveyor belt is stressed evenly in the loading area, which will reduce the daily maintenance cost. It effectively eliminates the spillage or scattering of the material causedby inequality of the stress on the belt.

3. The UHMW polyethylene surface has outstanding sliding properties, to reduce the frictional resistance to the minimum.
4. Ultra elastic rubber absorbs the impact in the maximum.
5. Each part of the impact bar is closely jointed by hot vulcanization.
6.“T-track” fastening device has different tightening points along the bar and make the joining strong and reliable, easy to install and remove.
