SEAGULL ELECTRIC WINCH ,electric windlass winch
US$ 10 - 100
/ Piece
5 Pieces(Min. Order)
- Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Seagull | |
| Model Number | KDJ | Power Source | Electric | |
| Application | ATV/UTV | Capacity | 9500lbs |
Product Description

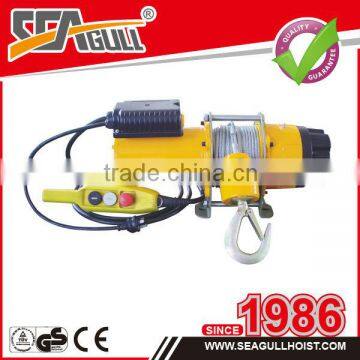

ELECTRIC WINCH
electric windlass winch
1.powers load in and out
2.full metal differential planetary gear train
3.pull and turn freespooling clutch
4.Low-amp permanent magnet motor
5.Circuit breaker protector available
6.4-way roller fairlead
7.Removable clevis pinned latched hook with rope thimble.
8.Mounting plate.
| Model | Rated Load (kg) | Rated Speed (m/min) | Lifting Height(m) | Cable Diameter(mm) | Cord Capacity(m) | Work Level | Motor(kw) | Volt(v) | Frequency(Hz) | N.W.(Kg) |
| KDJ-200E | 200 | 11 | 29 | Φ6 | 30 | M3 | 0.6x4 | AC 100/110/120/220/230/240 | 50/60 | 36 |
| KDJ-250E | 250 | 0.75x4 | 40 | |||||||
| KDJ-300E | 300 | 13 | Φ7 | 30 | 1.1x4 | 49 | ||||
| KDJ-300E1 | Three phase 230/380/415/440/480 | 48 | ||||||||
| KDJ-500E1 | 500 | 13 | 58 | Φ9 | 60 | 2.2x4 | 136 | |||
| KDJ-750E1 | 750 | 3x4 | 149 | |||||||
| KDJ-1000E1 | 1000 | 13.5 | Φ11 | 60 | 4x4 | 156 | ||||
| Symbol Model | A | B | C | D | E | F | G | H | ||
| KDJ-200E | 4-Φ10.5 | 142 | 142 | 510 | 210 | 246 | 108 | Φ94 | ||
| KDJ-250E | 525 | |||||||||
| KDJ-300E | 172 | 540 | 133 | Φ90 | ||||||
| KDJ-300E1 | 548 | |||||||||
| KDJ-500E1 | 4-Φ14 | 400 | 330 | 922 | 372 | 430 | 240 | Φ140 | ||
| KDJ-750E1 | 4-Φ18 | 935 | ||||||||
| KDJ-1000E1 | ||||||||||
| Model | Rated Load (kg) | Rated Speed (m/min) | Lifting Height(m) | Cable Diameter(mm) | Cord Capacity(m) | Work Level | Motor(kw) | Volt(v) | Frequency(Hz) | N.W.(Kg) |
| KDJ-2200E1 | 2200 | 10 | 97 | Φ16 | 100 | M3 | 6x4 | Three Phase 130/380/415/440/480 | 50/60 | 450 |
| KDJ-3200E1 | 3200 | 11 | Φ18 | 7.5x4 | 500 | |||||
| KDJ-3500E1 | 3500 | 140 | 143 | 9x4 | 550 | |||||
| KDJ-5000E1 | 5000 | 192 | Φ22 | 200 | 15x4 | 1500 | ||||
| KDJ-10000E1 | 10000 | 235 | Φ32 | 250 | 22x6 | 3000 | ||||
| Symbol Model | A | B | C | D | E | F | G | H | ||
| KDJ-2200E1 | 4-Φ22 | 600 | 499 | 1160 | 565 | 658 | 312 | Φ178 | ||
| KDJ-3200E1 | 847 | 1431 | 860 | 416 | ||||||
| KDJ-3500E1 | ||||||||||
| KDJ-5000E1 | 6-Φ24 | 920 | 950 | 1860 | 1010 | 1260 | 660 | Φ300 | ||
| KDJ-10000E1 | 1600 | 2450 | 1050 | 832 | Φ450 |
