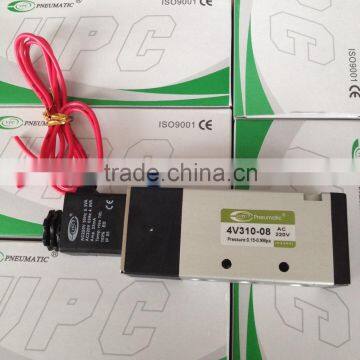

Airtac Type Pilot acting Aluminium Solenoid Valve 4V310-08 G1/4" 220VAC
- T/T D/P D/A Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Pilot | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Material | Other, Alloy, Aluminum Alloy | Temperature of Media | Medium Temperature | |
| Media | Other, 40 micro filteration | Port Size | 1/4" | |
| Place of Origin | Zhejiang, China | Model Number | 4V310-08 Airtac Type Pilot acting Aluminium Solenoid Valve | |
| Brand Name | VPC Airtac Type Pilot acting Aluminium Solenoid Valve 4V310-08 | Application | General |
Product Description
Airtac Type Pilot acting Aluminium Solenoid Valve 4V310-08 G1/4" 220VAC Specifications:
Category: Pneumatic Valves
Type: 5/2 Way Internally Piloted Acting Type Single Solenoid Valve
Model: 4V310-08
Coil: 220V AC, LED Light
Port Size: Air Inlet=Air Outlet=G1/4"
Effective area: 30mm2
Operating temperature range:-5~55℃
CV Value: 1.68
Coil power: 3VA
Working pressure range: 0.15~0.8MPa
Proof pressure: 1.05MPa
Voltage range: ±10%
Power consumption: AC:4.5W DC:3W
Insulation and protection: Class F.IP65
Wiring method: Lead and DIN connector
Frequency: 5/S
Response time: 50ms
Weight: 300g
Airtac Type Pilot acting Aluminium Solenoid Valve 4V310-08 G1/4" 220VAC Features:
| Model | 4V110-06 | 4V210-08 | 4V310-08/4V310-10 | 4V410-10/4V410-15 |
| Working Medium | 40 Micron filtered air | |||
| Motion Pattern | Internally Piloted Acting Type | |||
| The Position | Two-position five-port | |||
| Effetive Area | 12mm 2 (CV=0.67) | 16mm 2 (CV=0.78) | 30mm 2 (CV=1.68) | 50mm 2 (CV=2.79) |
| Joint Pipe Bore | Inlet=outlet=exhaust=G1/8 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/2 |
| Working-Pressure | 1.7-7.0kg/cm 2 (24-100psi) | |||
| Max. Pressure-Resistce | 10.5kg/cm2(150psi) | |||
| Operating Temperature | 5-50 | |||
| Voltage Range | ± 10% | |||
| Power Consumption | AC: 1.3VA DC: 1.5W | |||
| Insulation | F Class | |||
| Protect | IP65(DIN40050) | |||
| Wiring Form | Direct outlet or terminal type | |||
| Highest Action Frequency | 5 cycle per sencond | |||
| Shortest Excitation | 0.05 second | |||
| Weight | 120g | 200g | 310g | 590g |
Other sizes available:4V110-M5, 4V120-M5, 4V130-M5, 4V110-06, 4V120-06, 4V130-06,4V210-06, 4V220-06, 4V230-06, 4V230-08,4V210-08, 4V320-8, 4V330-08,4V310-10, 4V320-10,4V330-10,4V410-15, 4V420-15, 4V430-15
