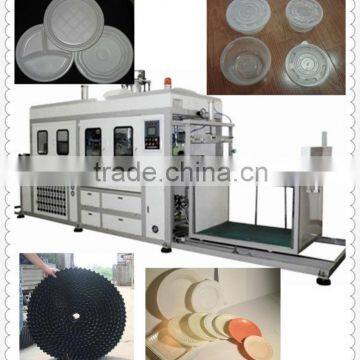

price for SP-700/1200 Automatic Hi-speed Plastic vacuum thermofomring machine

Configuration List

SP-700/1200

Vacuum Pump: Berker, Germany Volume: 120 cubic meter/hr

Solenoid Valve: SMC, Japan

Mini Relay: OMRON,Other Electrical Parts:Huanan, CHNT.

PLC: Siemens, Touch Screen: Viewer, Taiwan

Cylinder: φ80 mm/φ120 mm (ZHICHENG)

Infrared Ceramic Heater: 60 pcs*400W

Intelligent Temperature Controller: Gaoqi, China

Sprayer: Baoli, Taiwan

Transducer: Schneider, France

Coder: OMRON, Japan

Feeding Motor: 2.2 KW, Chenggang,Taiwan

Mechnical Details

Forming Width:480mm-700mm

Forming Length: 700mm-1220mm

Required sheet width:510mm-740mm

Required Thickness of sheet: 0.1-1.2 mm

Material: PP,HIPS,PVC,PET

Max. Depth of Draw       180mm(Positive);   130mm(Negative)

Forming speed:180-600 cycles/hr

Mode of cutting arrangement: off-mould

Main supply voltage:380v/50HZ   Tri-phase, four-wire

Power Consumption: 18KW(Approx.)

Machine Dimension(L*W*H):7800-1400-2415mm

Machine Weight:3000kg

Breifly Introduction

1.The facultative adjustment sheet width between 510-740 mm.

2.Motor to feeding sheet, the error less than 3mm, length of sheet can adjusted expediently on man-machine touch screen.

3.Tremor to eject from mould, the frequency adjustable between 0-20 times. Adjustable swing, ejecting from mould by inverted blowing to make the good quality of products.

4.Assemble with the mould plate. Can be chose by customer’s request.

5.PLC control system control whole process. Twice vacuum, twice up mould.

6.To avoid over-temperature when feeding for the first time. It is effectively to reduce waste by manual sheeting seeding in advance.

8.Pressurized by alloy slice around oven heater, less caloric losing, saving 60% electric power.
