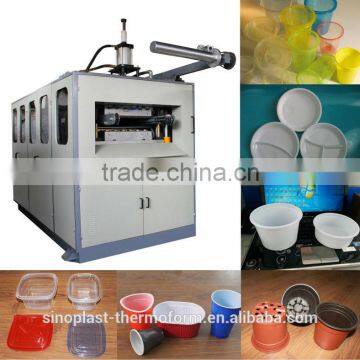

Automatic Cam Plastic Cup Thermoforming Machine, PP/PS/PET/PVC cup/plate/lids/container making machine
- 15 Set / Sets per Month
- Ningbo
- T/T Credit Card
You May Like
-
SPC-750 cup machine price, Thermoforming Machine, plastic cup making machine, forming machine
-
SPC-660 Automatic Thermoforming Machine, cup machine, cup making machine, plastic cup forming machine
-
PP Jelly Cup Forming Machine, thermoforming machine, 2015 brand new plastic cup making machine
-
Ice Cream Cup Forming Machine, thermforming machine
-
Ice Cream Cup Making Machine
-
Yoghurt Cup Making Machine, milk cup thermoforming machine, cup making machine
Product Details
| Condition | New | Product Type | Plastic Cup | |
| Place of Origin | Zhejiang, China | Brand Name | Sinoplast | |
| Model Number | SPC-660C | Voltage | 380V/50HZ | |
| Power(W) | 35KW | Weight | 3500KG | |
| Certification | CE, UL | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter and the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
5) We adopt square steel to make the machine frame stronger.
6) The working performance of this machine is controlled PLC and touch screen.
III. Main Technical Parameter:
Model | SPC-660C |
Mould Driving Method | Cam |
Approximate Max. Forming Area | 660 x 300 mm |
Approx. Running Speed | 15-30 Stroke / min approx. during production |
Approx. Sheet width for feeding | 500 – 660 mm in rolls. |
Mode of cutting arrangement. | In mould automatic |
Sheet thickness Range | 0.20 – 2.0 mm |
Material | PP, PS, PET, PVC,PLA |
Max. Draw depth, (i.e. cup length) | 140 mm (Could be special design) |
Motor Power | 11KW |
Sheet Feeding Motor | 2.2KW |
Max. Sheet roll diameter. | 800 mm |
Heating arrangement | Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. | PID K-Type |
Type of Mould | Multi cavity 1 – 3 row. |
Approx. Electrical Consumption | 45KW/hr |
Approximate Dimension | L3750×W1550×H2500 (mm) |
Approximate Weight | 4000Kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.
IV. Some Thermoforming Samples:
V. Thermoforming Mould Photos:
VI. Auxiliary Machines For Cup Thermoforming Machine:
