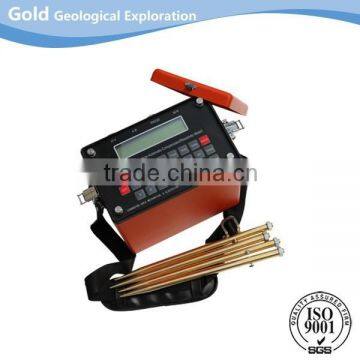

Electronic high accuracy undergrond water finder

Utilizing the apparent resistivity parameters, this water finder is widely used in hydrology, environmental protection, engineering geophysical

exploration, metal and non-metal mineral resources exploration.

This instrument applies to electrical prospecting such as vertical electrical sounding, electrical profiling, charging method and

spontaneous potential method, etc. On ground and in trench.

Microcomputer controlled, direct-reading resistivity, various electrode arranging mode, data protection against power-failure.

Maximum power supply voltage: 700V

Maximum power supply current: 3A

Voltage measuring range: ±3000mV

Voltage measurement accuracy: ±1.5%, ±0.1mV

Current measuring range: 0.1mA~3000mA

Current measurement accuracy: ±1.5%, ±0.1mA

Spontaneous potential compensation range: -1000mV~+1000mV

Instrument input impedance: >30M ohm

Working temperature: -10C Celcius ~50C Celcius

Volume: 244*154*237mm

No.	Description	Quantity	Picture
1	Battery case	4 Pcs
2	Alluminium case	1 Pc
3	Electrode	4 Pcs
4	Covered wire	1000 m
5	Brass wire	400 m

Use aluminium case for the water finder , and use wooden case to pack all accessories and the meter.

Dimension: 680*640*580mm

Weight: 57KG
