Home > Products > Geophysical Exploration Equipment > High-accuracy Base and Rover RTK GNSS/GPS Surveying System

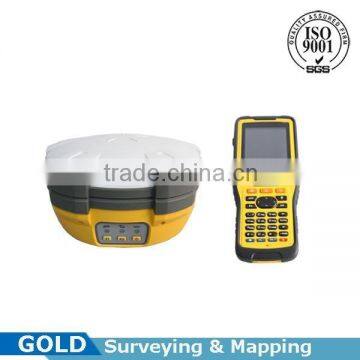

High-accuracy Base and Rover RTK GNSS/GPS Surveying System
- Chongqing China
- T/T
You May Like
-
Data Auto-recorded RTK GNSS/GPS Base and Rover Surveying System
-
Electronic high accuracy undergrond water finder
-
Fast Mapping Failback Technology Marine Echo Sounder
-
Dual-axis Compensating Reflectorless Total Station
-
30Hz Water Depth Collecting Rate Marine Echo Sounder
-
High-accuracy RTK GNSS/GPS Base Station
Product Details
| Type | Gps Receiver | Use | Other, Static | |
| Function | Bluetooth-enabled | Place of Origin | Chongqing, China | |
| Brand Name | GOLD | Model Number | VG30 | |
| Warranty | 1 Years |
Product Description
High-accuracy Base and Rover RTK GNSS/GPS Surveying System
Rugged and reliable:
1. IP67, withstands a 3-meter natural fall onto concrete
2. Rapid tracking and optimum avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.
Competitive and easy to use:
1. Simply position and turn on, data will be recorded automatically
2. Supports high-speed USB data downloading.
3. Flexible working modes of static/PPK/stop & Go to deliver high-accuracy survey.
Powerful battery:
1. Powered by high-capacity (5000mAh) Li-ion battery to insure whole day operation.
User-friendly geomatics office (HGO) software:
1. Provides a total GPS/GLONASS/BDS processing solution.
2. Standard rinex data format and raw data format can be processed flexibly and easily.
Advanced V30ST static receiver
1. Embedded Linux OS.
2. Supports recording of raw data format and standard rinex format simultaneously.
3. Easily upgrade to RTK receiver.
Static receiver | V30 XT | V30 ST | |
Channel | 12 | 220 | |
Signal tracking | GPS | L1 C/A | L1 C/A, L2E, L2C, L5 |
Glonass | - | L1C/A, L1P, L2C/A, L2P | |
SBAS | L1 C/A | L1C/A, L5 | |
BDS | - | B1,B2 | |
Bluetooth | YES | YES | |
Positioning accuracy | Static and Fast Static GNSS surveying Horizontal: ±(0.5mm+1ppm RMS) Vertical: ±(10mm+1ppm RMS) | Static and Fast Static GNSS surveying Horizontal: ±(2.5mm+1ppm RMS) Vertical: ±(5mm+1ppm RMS) | |
Post processing kinematic(PPK/Stop & Go) GNSS surveying Horizontal: ±(2cm+1ppm RMS) Vertical: ±(3.5cm+1ppm RMS) Initialization reliability:typical>99.9% | Post processing Kinematic(PPK/Stop & Go)GNSS surveying Horizontal: ±(1cm+1ppm RMS) Vertical: ±(2.5cm+1ppm RMS) Initialization time: typical 10 minutes for base while 5 minutes for rover Initialization reliability:typical>99.9% | ||
Baseline length | Static and Fast Static: <20km Stop & Go, PPK: <10km | Static: 30-40km for low latitude area; up to 100km Fast Static: <20km; Stop & Go: <20km; PPK: <15km | |
Data storage | 64MB | 1GB | |
Data download | COM/USB | COM/USB | |
Interval | 1s-60s adjustable | ||
Elevation | 1°-60° adjustable | ||
Data update rate | 1-20hz | 1-50hz | |
Communications | 2 RS-232 port; 1 USB port; 1 bluetooth port; 2 external DC power input port | ||
Dimension | 19.5cm * h10.4cm | ||
Weight (with battery) | 1.15kg(incl. battery) | 1.3kg (incl.battery) | |
Water/dust proof | IP67, 3m(9.84ft) natural fall onto concrete | ||
Working temperature | -40℃~+65℃ | ||
Storage temperature | -40℃~+75℃ | ||
Electrical | 2 pcs 7.4v 5000mAh lithium battery, supports 6-28v external DC power supply | ||
Power consumption 1.4w | Power consumption 3.2W | ||
Working time 15-17 hours | Working time 13-15 hours | ||
Software | Relevant software provided | ||
Professional Mechanical & Electrical Equipment manufacturer in China.
With high quality products, competitive price and professional services.
Our products include:
1)Geological Exploration Instruments
2)Seismic Instruments
3)Drilling Machine
4)Well Logging System
5)Element Analysis Instruments
Hope there will be a chance for us to have a cooperation with each other, I believe our professional products and services will make you satisfied and bring mutual benefits to both sides of us.
