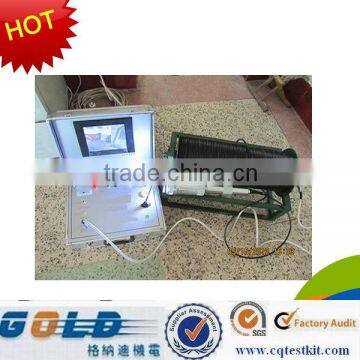

Water Well Inspection Cameras 100-200m Down Hole Monitor Camera

Detailed Product Description

Borehole Inspection Camera JKX Underground Inspection Camera take full degree hole wall images by Borehole Inspection Camera

Borehole Inspection Camera JKX Underground Inspection Camera

This Borehole Inspection Camera  adopts reflective axicon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order N→E→S→W→N. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.

Data Processing Function
· Browsing, real-time display of position and depth
· Marking of images and literal texts
· Making of interpretation lines on images
· For convolution rotation, see coregraph
· Calculate the inclination of stratum construction
· Measure the thickness of rock stratum and the width of cracks

Technical Specifications

• 1Vp-p PAL TV Signal 75Ω Video Output
• 1Vp-p PAL TV Signal 75Ω Video Output
• Definition: 450TVL
• Viewing Angle: 360° Hole Wall
• Lighting: Built-in K3200° Trichromatic Lighting Ring
• Probe Diameter: φ70mm
• Adaptation Aperture: φ75~φ300mm
• Power Supply: AC220V±10% 50Hz
• Software Operating Environment: Win2000/XP
• Adapted Hole Depth: 0~300mm Clear Water Hole or Dry Hole
