304 stainless steel flat bar

FOB Price

US$ 940 - 2,900 / Ton

1 Ton(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	JIS, AISI, ASTM, GB, DIN, EN	Dimensions	Various sizes for selection
Grade	Other, stainless steel 201,304,316..	Place of Origin	Jiangsu, China
Brand Name	TELLO	Model Number	Flat,round.. bar
Type	Other, flat,round,square...	Application	Industry,Machinery parts, Fabrication,Construction...
Certification	ISO

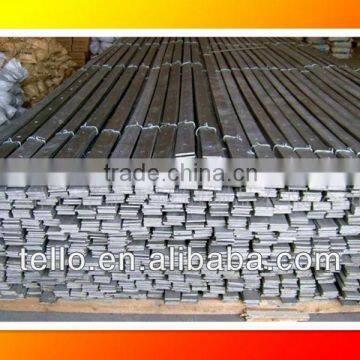

stainless steel flat bar
1.Material:201,301,304,316,316L..
2.Certificate:ISO,SGS
3.Size:various

stainless steel flat bar

Name	Tello stainless steel bar,angle,flat,hexagonal,square,channel bar
Standard	ASTM A554, A312, A249, A269 and A270
Material Grade	304,316,201,202, 316L,430
Size Range	3x20-20x200mm
Length	6m or as customers' request
Tolerance	a) width: +/-0. 15mm
	b) Thickness: +/- 0.02mm
	c) Length:+/-4. 5mm - 0mm
Surface	180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish
Test	Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT
Chemical Composition of Material	Composition Material	201	202	304	316	430
	C	≤0.15	≤0.15	≤0.08	≤0.08	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	16-18	17-19	18-20	16-18	16-18
	Ni	3.5-5.5	4-6	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<253	<253	<200	<200

We are professional stainless steel products manufacturer.

Warmly welcome all friends from worldwide,please contact us immediately if you have any requitment.

Nanjing Yuhuatai Tello Stainless Steel Products Factory: Contact nameZhenhua Ding
Chat Now; Phone86-25-52863660-603; Address4-2-802, Times Haoyun Garden, Nanjing, Jiangsu
