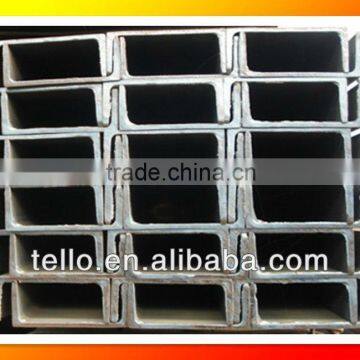

u channel steel

FOB Price

USD $800 - $2,500 / Ton

1 Ton(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

stainless steel channel
1.material:ss201,301,316...etc.
2.size:various
3.ISO.SGS

stainless steel channel

Name	stainless steel channel
Standard	ASTM A554, A312, A249, A269 and A270
Material Grade	304,316,201,202, 316L,430
Size Range	25×25×3—100×100×10mm
Length	6m or as customers' request
Tolerance	a) width: +/-0. 15mm
	b) Thickness: +/- 0.02mm
	c) Length:+/-4. 5mm - 0mm
Surface	180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish
Application	Ornamental tubes, Decoration construction, upholstery, industry instruments
Test	Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT
Chemical Composition of Material	Composition Material	201	202	304	316	430
	C	≤0.15	≤0.15	≤0.08	≤0.08	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	16-18	17-19	18-20	16-18	16-18
	Ni	3.5-5.5	4-6	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<253	<253	<200	<200

Please don't hesitate to let me know your any requirements.
