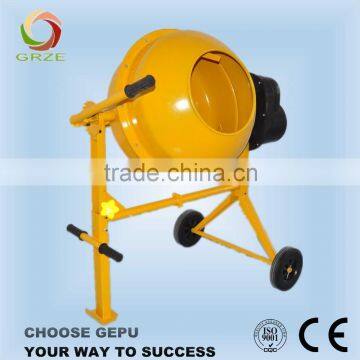

Horizontal Type Portable Mini Cement Mixer Machine with Bar Operation for Sale
- Tianjin China
- T/T
You May Like
-
Hand-pushed Type Portable Mini Cemnet Mixer Machine for Sale
-
Horizontal Type Cement Mixer Machine with Wheel Operation
-
120Liter 4 Cubic Foot Electric Motor Cement Mixer Concrete Mixer
-
120-240Liter Drum Capacity Electric Motor Engine Beton Mixer Concrete Mixer Cement Mixer
-
Hot Sale 200L Drum Capacity Electric Portable Concrete mixer Cement Mixer
-
Factory CE 200Liter Electric Motor Sand Mortar Beton Cement Mixing Concrete Mixer
Product Details
| Condition | New | Place of Origin | Hebei, China | |
| Brand Name | GRZE | Model Number | GZW120-240 | |
| Motor Power | 750w/1000w | Mixing Power | 750w/1000w | |
| Charging Capacity | 40-80L | Reclaiming capacity | 40-80L | |
| Speed of Mixing Drum | 28RPM | Water Supply Mode | Mannual | |
| Working Cycle Period | 60s | Discharge Way | Manual | |
| Outline Dimension | 120*70*130cm | After-sales Service Provided | No overseas service provided |
Product Description
Horizontal Type Portable Mini Cement Mixer Machine with Bar Operation for Sale
BASIC INFORMATION
PRODUCT PARAMETER
| MODEL | 120L | 140L | 160L | 180L | 200L | 220L | 240L |
| MOTOR POWER | 550w | 550w | 750w | 800w | 800w | 1000w | 1000w |
| VOLTAGE | 220--240V 50HZ 110-120V 60HZ | ||||||
| CARTON DIMENSION | 79x76x43 | 79x76x44 | 79x76x45 | 79x76x46 | 79x76x53 | 79x76x56 | 79x76x59 |
| UPPER DRUM THICKNESS | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| LOWER DRUM THICKNESS | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
| DRUM DIAMETER | 71.5CM | 71.5CM | 71.5CM | 71.5CM | 71.5CM | 71.5CM | 71.5CM |
| DRUM MOUTH | 38CM | 38CM | 38CM | 38CM | 38CM | 38CM | 38CM |
| GEAR MATERIAL | CAST IRON | CAST IRON | CAST IRON | CAST IRON | CAST IRON | CAST IRON | CAST IRON |
| N.W/G.W | 66/69 | 65/69 | 67/70 | 68/71 | 71/75 | 73/77 | 75/79 |
| MOTOR SPEED | RPM1400-2800 | RPM1400-2800 | RPM1400-2800 | RPM1400-2800 | RPM1400-2800 | RPM1400-2800 | RPM1400-2800 |
| DRUM SPEED | 28RPM | 28RPM | 28RPM | 28RPM | 28RPM | 28RPM | 28RPM |
| WHEEL SIZE | 9 "x2.17 " | 9 "x2.17 " | 9 "x2.17 " | 9 "x2.17 " | 9 "x2.17 " " | 9 "x2.17 " | 9 "x2.17 " |
| INSULATION LEVEL | IP45 | IP45 | IP45 | IP45 | IP45 | IP45 | IP45 |
PRODUCT DETAILS
PRODUCT ADVANTAGE
- Strongest core - quality motor( Imported copper free maintenance type waterproof motor )
- Resonable structure and uniform mixing
- Low mixing time,low power consumption, low noise.
- Small volume with high capacity.
- Easy installation.
- Can be used in any environment.
BRAND INTRODUCTION
SERVICE IDEA - People-oriented, customer oriented, innovation oriented
GRZE is a modern enterprise and professional manufacturer of mixer, with excellent corporate culture, advanced business philosophy, prudent business style, Has been set a good image in the market. The company has advanced technology and equipment, rich manufacturing experience, perfect physical and chemical testing equipment, product qualified rate is up to100%. The Enterprise have passed ISO9001: 2000 international quality system certification, CE certificate and so on.
PRODUCTION EQUIPMENT
CERTIFICATES
PACKAGE AND SHIPPING
| TYPE | MODEL | CARTON DIMENSION | N.W/G.W | QTY. OF 20'FT | QTY. OF 40'FT | QTY. OF 40'HQ |
HORIZONTAL TYPE | 120L | 79x76x43 | 65/69 | 105 | 225 | 225 |
| 140L | 79x76x44 | 66/69 | 105 | 225 | 225 | |
| 160L | 79x76x45 | 67/70 | 84 | 180 | 225 | |
| 180L | 79x76x46 | 68/71 | 84 | 180 | 225 | |
| 200L | 79x76x53 | 71/75 | 84 | 180 | 225 | |
| 220L | 79x76x56 | 73/77 | 84 | 180 | 225 | |
| 240L | 79x76x59 | 75/79 | 63 | 135 | 180 | |
| HAND-PUSHED TYPE | 120L | 79x74x44 | 49/52 | 105 | 216 | 261 |
| 140L | 81×74×44 | 51/54 | 84 | 180 | 210 | |
| 160L | 81×74×47 | 53/57 | 84 | 180 | 210 | |
| 180L | 81×74×50 | 55/59 | 84 | 180 | 210 | |
| 200L | 81×74×53 | 57/61 | 84 | 168 | 189 | |
| 220L | 81×74×56 | 59/63 | 84 | 168 | 189 | |
| 240L | 81×74×59 | 61/65 | 84 | 168 | 189 |
WE CAN FOLLOW CUSTOMER'S PACKING DESIGNS. IF YOU HAVE ANY REQUIREMENT ABOUT THE PACKAGE PLEASE FEEL FREE TO LET US KNOW.
