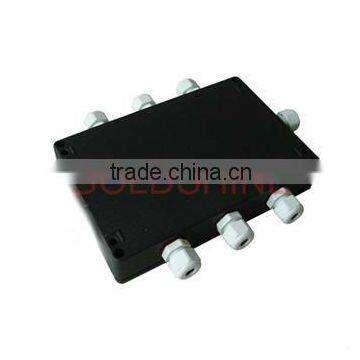

Electric Junction Box
- Ningbo
- T/T L/C
You May Like
Product Details
| Brand Name | GOLDSHINE | Model Number | SS (10 Core) | |
| Protection Level | IP65 | Type | Junction Box |
Product Description
Product Characteristics:
Stainless steel, durable, good anti- Interference
With special Waterproof gland
Compensation is adjusted by High stability Import multi-turn potentiometer
Cover with waterproof rubber gasket, waterproof, dustproof, suitable for harsh environmental conditions place
The total signal for 10pcs load cells
Cable tandem for 10pcs load cells
Prevent the damage of lightning and surge damage to load cell
Partial load performance signal conditioning for weighing scale.
Technical parameter:
Type | GSBJ-8A | |
Adjustment Method: |
| Signal Output adjustment |
Gross Weight: | Kg | 1.25 |
Maximum Allowable Voltage: | V | 18 |
Material: |
| Stainless Steel |
Dimension: | mm | 253×172.2×45.5 |
Normal Operating Temperature: | F | -10---+50-40---212 |
Storage Temperature: | F | -20---+60-40---212 |
Gland Suitable For Cable Diameter: |
| PG 3---6.5mm |
Protection Class: |
| IP68 |
