Special Load Cell For Crane Scale
- 5000 Set / Sets per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | GOLDSHINE | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Digital Sensor |
Product Description
Cap./Size | L | L1 | L2 | L3 | B | B1 | B2 | M | W | W1 | W2 | φ |
1~5t | 228 | 25 | 73 | 216 | 55 | 84 | 29 | 5 | 45 | 26 | 18 | 27 |
7.5~10t | 281 | 32 | 86 | 249 | 60 | 98 | 34 | 6 | 60 | 38 | 23 | 33 |
15~20t | 331 | 40 | 110 | 300 | 85 | 125 | 50 | 8 | 75 | 55 | 40 | 44 |
Product Characteristics:

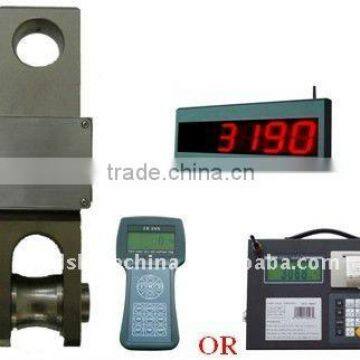

GS221W series is special wireless load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. High precision, strong overload protection capacity and anti-deflective loading. The load cell with special hook and ring, easy installation.
Circuit Diagram:
Technical Parameter:
Rated Load: | 1t/2t/3t/5t/7.5t/10t/20t |
Wireless Frequency: | 430~485MHz |
Wireless Distance: | Min:80m(default)[200m(optional)] |
A/D Conversion Rate: | ≥50 times/seconds |
Battery Life: | ≥50 hours |
Sensitivity: | (1.5±0.1%) m V/V |
Combined Error: | ±0.02% F.S |
Creep Error(30min): | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10°C |
Temp. Effect On Span: | ±0.02% F.S/10°C |
Input Resistance: | 750±5Ω |
Output Resistance: | 702±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range | -30~+70°C |
Maximum Safe Over Load: | 120%F.S |
Ultimate Over Load: | 200%F.S |
Recommend Excitation: | 10~12V DC |
Maximum Excitation: | 15V DC |
Sealing Class: | IP67 |
Element Material: | Alloy Steel, Stainless Steel |
Citation: | GB/T7551-2008/ OIML R60 |
Notice:
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery. Do not excess discharge.
Note: Wireless display JX280, JX680 and wireless scoreboard You can choose according to your requirements as followings:
Wireless Indicator
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
