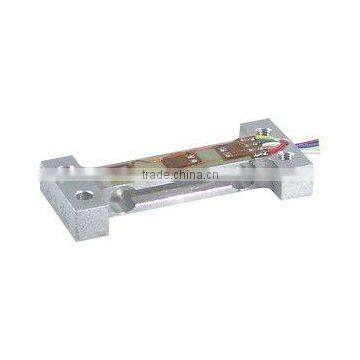

Electronic Miniature Sensors
-
Aluminum Miniature load cell
-
With high precision alloy steel Wireless Dynamometer Dyna Link JXCS-SW7WB
-
China HC Type Wire Rope Electric Hoist(Motor Hoist,Electric Block )
-
With high precision HSH-C lever block,manually lever chain hoist
-
Durable material handling low headroom electric chain hoist (single speed / dual speed )
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | AMQ47 | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
Products Specification:
Model: | AM Q47X20X6.6 | |
Capacity: | 100,120g | 300,500,1000g |
Combined Error: | 0.05 | |
Output Sensitivity: | 0.60±0.2mV/V | 0.90±0.2mV/V |
Non-Linearity: | ±0.05%F.S | ±0.05%F.S |
Repeatability: | ±0.05%F.S | ±0.05%F.S |
Hysteresis: | ±0.05%F.S | ±0.05%F.S |
Creep: | ±0.05 (2min)%F.S | ±0.05 (2min)%F.S |
Temp.Effect On Zero: | ±2.0%F.S/10°C | ±2.0%F.S/10°C |
Temp.Effect On Span: | ≤+0.05%F.S/10°C | ≤+0.05%F.S/10°C |
Zero Balance: | ±0.5mV/V | ±0.5mV/V |
Input Resistance: | 1055±10Ω | 1055±10Ω |
Output Resistance: | 1000±5Ω | 1000±5Ω |
Insulation Resistance: | ≥2000MΩ(50V) | ≥2000MΩ(50V) |
Excitation Voltage: | ≤6V | ≤6V |
Operation Temp.Range: | -10--+40°C | -10--+40°C |
Overload Capacity: | 150%F.S | 150%F.S |
Recommended Application: | Fishing Scales | Handable Scales |
