Home > Products > Aluminum Load Cell > AM605SA- Aluminum Alloy Sensor.
AM605SA- Aluminum Alloy Sensor.
- Ningbo or Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | AM605SA | Usage | Other, Pressure Sensor, Pressure sensor | |
| Theory | Inductance Sensor | Output | Digital Sensor |
Product Description

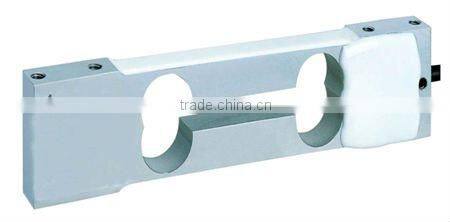

Aluminum alloy sensor/ Mini sensor AM605SA
Product Characteristics:
AM605SA Aluminum-alloy;Colorless anodized; Hermetically sealed with glue to IP65. Applications for electronic counting scales, platform scales etc..
Capacity: | 0.3Kg ~3kg |

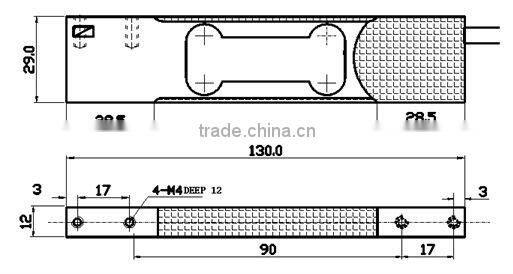

Outline Size: | 12×29×130 |
Rated Output: | 1.2±15%mV/V |
Zero Balance: | ±5%R.O. |
Non-Linearity: | ±0.015%R.O. |
Hysteresis, Non-Repeatability: | ±0.015%R.O. |
Creep(30 Minute): | ±0.02%R.O. |
Temperature Compensated For Output: | ±0.03%R.O./10°C |
Temperature Compensated For Zero: | ±0.03%R.O./10°C |
Input Resistance: | 405±10Ω |
Output Resistance: | 350±3Ω |
Insulation Resistance: | ≥5000MΩ |
Temperature Compensated: | -10to+40°C |
Operating Temperature Range: | -20to+60°C |
Excitation, Recommended: | 5~12VDC |
Excitation, Maximum: | 18VDC |
Safe Overload: | 150%.R.C |
Cable, And Length: | 25m(φ4) |
Note: The length of the cable cab be adjusted according to customers’ requirement, but we suggest to use this standard length to ensure the output precision.
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
