QTJ5-20 Brick Machine Stone Block Cutting Machine
- Guangzhou or Fangcheng Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
QTJ5-20 Used Block Making Machine Used Block Machine for Sale
-
QTJ5-20 Interlocking Brick Machine Styrofoam Block Machine
-
Brick Making Machine Price Cheap Brick Making Machines
-
QTJ5-20 Mechanical Transmission Split Face Block Machine
-
Full Automatic Fly Ash Interlocking Brick Machine
-
Japanese PLC Controller/ Hydraform Block Making Machine Price
Product Details
| Condition | New | Type | Other, block beton mesin | |
| Brick Raw Material | Concrete | Processing | Other, mechanical transmission brick making machine | |
| Method | Other, PLC Automatic control, Mechanical transmission, Electric Vibration | Automatic | Yes | |
| Capacity | 5,000~35,000 blocks/shift(8hours) | Place of Origin | Guangxi, China | |
| Brand Name | SHENTA machine | Model Number | QTJ5-20 | |
| Voltage | 380V | Power | 44kW | |
| Dimension(L*W*H) | 3400x2040x4300mm | Certification | CE, ISO9001:2008, BV | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Package is suitable for container load and ocean shipping.
QTJ5-20 Mechanical transmission compact structure block beton mesin block making machine
Product Description
Specifications
stone block cutting machineMechanical transmission,
stable operation
Compact structure,small occupation
High strength
I. Characteristic of QTJ5-20 brick machine stone block cutting machine
- Control system: Adopted with Taiwan intelligent programmable logic controller (PLC) and high performance LCD, our brick machines can realize the man-machine conversation and fully automatic intelligent operation.
- High efficient vibration system: Adopt intelligent control and synchronous vertical vibration techniques. Bricks formed by synchronous vibrations of press head and mould table, which makes the forming speed faster and the bricks denser.
- Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working processes bring high precision, durable and a long service life.
- Transmission system: Adopted with mechanical transmission and two pillars oriented. Simple and compact structure brings it stable and consecutive actions and easy to be maintained.
- Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.
Operation Cycle | 20~25s | Pallet Size | 1050*550*30mm |
Brick Height | 60~200mm | MainPower Capacity | 44Kw |
Mixer Model | JS350 | Vibration Force | 60kN |
Net Weight | 8t | Main Machine Dimension | 3400*2040*4300mm |
Power Source | 3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.) | ||
Brick Type | Dimension | Blocks/Cycle | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick | 390*190*190mm | 5 | 900 | 7,200 | |
Porous Brick | 240*115*90mm | 16 | 2,880 | 23,040 | |
Solid Brick | 240*115*53mm | 32 | 5,760 | 46,080 | |
Note: Special brick model is available according to customer demand.
V. Process Flow: QTJ5-20 brick machine stone block cutting machine
VI. Raw Material: QTJ5-20 brick machine stone block cutting machine
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.
Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone and so on.
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by wooden boxes.

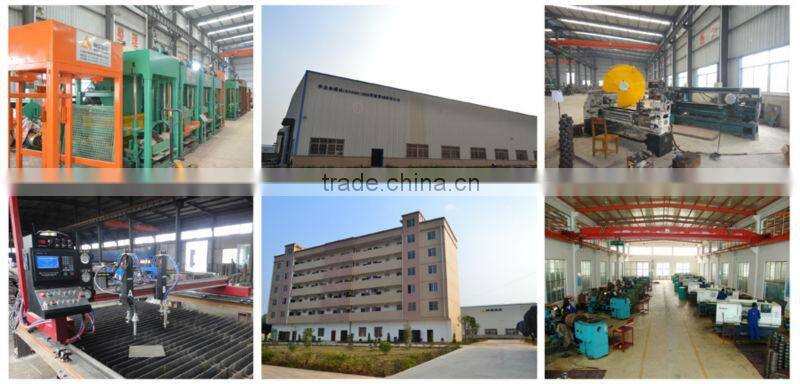

I. Factory Ability:
CNC Lathe | 06 sets | Boring Lathe | 02 sets | Shaper | 02 sets |
Milling Machine | 04 sets | Press Brake | 02 sets | CNC Flame Cutter |
01 set
|
Crane | 10 sets | Shot Blast Machine | 01 set | X-ray Inspection Instrument | 01 set |
We adopt the high quality steel materials, and every process will have the strict inspection and test comply with the ISO-9001or CE standard to ensure the machine has perfect performance.
III. Our Achievement:
Until now we have successfully export and handover our brick machine and production line to customers in Vietnam, Indonesia, Angola, India and Papua New Guinea, and acquire the good reputation of user.
IV. Exhibitions:
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; Bauma China in Shanghai, India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
Company Profile
Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, we have developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service. SHENTA factory covers an area of 40,000 square meter, with senior engineers more than 20 people and all kinds of technician more than 200 staff. With an annual production capacity of 500 sets. SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field. SHENTA not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc. Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
